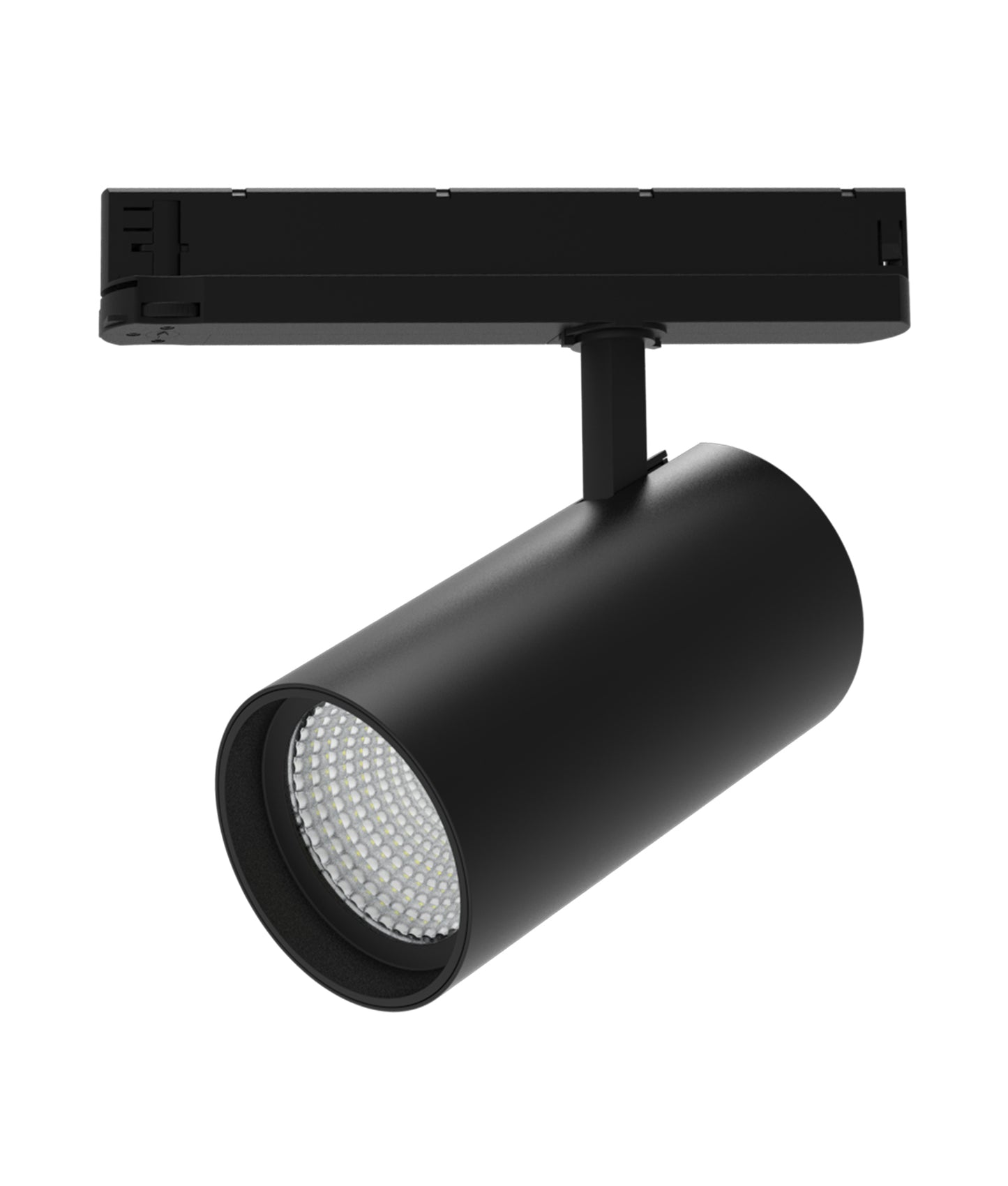

ZONE: 4 Wire 3 Circuit LED Tri-CCT Dimmable Track Head Fittings

ZONE: 4 Wire 3 Circuit LED Tri-CCT Dimmable Track Head Fittings

  • Input voltage: 220-240V
  • Faceplate & housing: powder coated aluminium
  • Diffuser: glass
  • Heatsink: aluminium
  • Tri-CCT: 2700K/ 4000K/ 6000K in one fitting
  • LED chip: 1pc COB LED
  • Rear switch
  • Power factor: 0.92
  • CRI: ≥90
  • Tilt: 90° / Swivel: 355°
  • Ambient temperature: -20 to 40°C
  • Suitable for dimming
  • Suitable for 2-way switching
  • Double insulated
  • IP20
  • Warranty: 3 year replacement warranty

Tested & Recommended Dimmers:

  • CLA: VELA, LYNX1
  • Clipsal: 32ELEDM, 32E450TM, 31E2RUDM, 32E450UDM
  • Diginet: MEDM
  • Schneider: SBD200LED, SBDB15RC
*Please check with Licenced electrician for Min and Max dimmer load. May be compatible with other untested dimmers
Colour
Part No: ZONE1WH

162 in stock


Search the closest store near you to buy CLA Products
View full details

Part No: ZONE1WH
Description: TRACK 4 WIRE 3 Circuit LED HEAD WH 30W TRI 2.7K-6K 2580Lm
Colour: White
Material: Faceplate & housing: powder coated aluminium; Diffuser: glass; Heatsink: aluminium
Input Voltage: 220-240V
Lamp Holder: -
Globe Included: -
Wattage: 30W
Kelvin: 2700K/ 4000K/ 6000K
Lumens: 2610lm/ 2860lm/ 2770lm
Beam Angle: 36 Degree
Power Factor: 0.92
CRI: >90
Diameter / Width: -
Height: -
Cut out: -
Canopy: -
Suspension: -
Box Size: 27x21x13cm
Box Weight: 1.1kg
Carton Qty: 1/8
