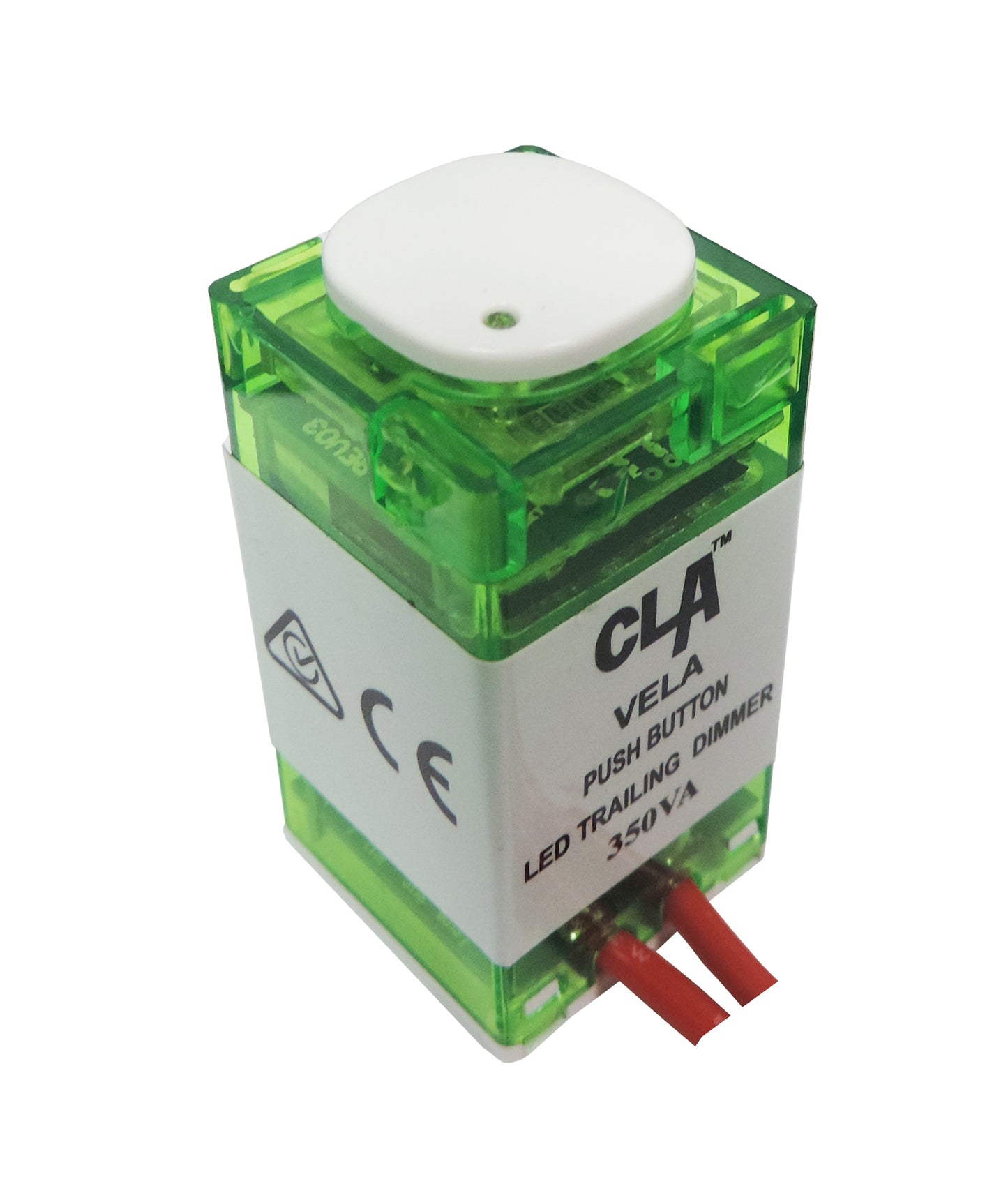

VELA: Push Button LED Trailing Dimmer

VELA: Push Button LED Trailing Dimmer

  • Soft start
  • Overload protection & short circuit protection
  • Easy to mount in most Australian plates
  • Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
  • Long press dimming button to dim
  • Short press dimming button to on/off
  • Comes with 2 face caps round & square edged to suit most Australian plates
  • IP rating: IP20
  • Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Technical Spec:

  • Nominal Operating:  Voltage 220-240V
  • Nominal Operating:  Frequency 50Hz
  • Maximum Load: 350VA
  • Minimum Load: 10VA
  • Dimming Technique: Trailing Edge Phase Control
  • Mounting Centres: 84mm Australian Pattern Plate
  • Specifications Typical @240V 25°C
  • Suitable for Indoor Use only
  • No User Serviceable Parts Inside
Part No: VELA

590 in stock


Search the closest store near you to buy CLA Products
View full details

Part No: VELA
Description: DIMMER Push Button 10-350VA LED HAL INCAND L/V electronic
Colour: -
Material: -
Input Voltage: -
Lamp Holder: -
Globe Included: -
Wattage: -
Kelvin: -
Lumens: -
Beam Angle: -
Power Factor: -
CRI: -
Diameter / Width: -
Height: -
Cut out: -
Canopy: -
Suspension: -
Box Size: 7x4x4cm
Box Weight: 0.04kg
Carton Qty:
