SHOPTRI: LED Tri-CCT Dimmable Shop Lighter

SHOPTRI: LED Tri-CCT Dimmable Shop Lighter

  • Input voltage: 200-240V AC 50/60Hz
  • External constant current dimmable driver included
  • Housing: white powder coated aluminium
  • Textured clear glass diffuser
  • Mounting plate & heatsink: aluminium
  • Surface mounted or recessed
  • Adjustable: 90°
  • Tri-CCT (3000K / 4000K / 5700K) switch on DC cable
  • LED chips: SMD2835
  • Power factor: 0.95
  • CRI: ≥80
  • Flex & plug: 1200mm

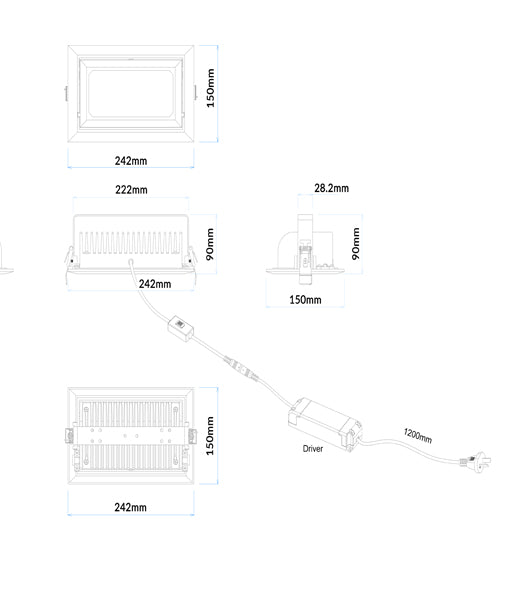

  • Mounting bracket: L 222mm x W 28.2mm
  • Suitable for dimming
  • Suitable for 2 way switching
  • Suitable for use with PIR or Microwave sensors
  • Ambient temperature: -20 to 40°C
  • IP rating: IP20
  • Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

Tested & Recommended Dimmers:

  • Clipsal: 32ELEDM, 32E450UDM, 31E2PUDM
  • HPM: CAT250, CAT250T, CAT400T
  • Diginet: MMDM/RT, MEDM
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)
Part No: SHOPTRI

102 in stock

View full details

Part No: SHOPTRI
Description: D/L GIMBAL DIMM 35W RECT WH Tri IP20 230x130mm 3200 Lm
Colour: Fitting Trim: White; F & P Colour: Black; Housing: White;
Material: Diffuser: Glass; Faceplate: Aluminium; Housing: Aluminium; Spring: Steel; Mount: Aluminium;
Input Voltage: 200-240V AC
Lamp Holder: -
Globe Included: -
Wattage: 35W
Kelvin: 3000K / 4000K / 5700K
Lumens: 2900lm / 3200lm / 3000lm
Beam Angle: 120 Degree
Power Factor: 0.95
CRI: 80
Diameter / Width: 90mm
Height: 90mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 27x16x11cm
Box Weight: 1.9kg
Carton Qty:
