SHIELDTRI: Exterior LED Waterproof Dual Power & Tri-CCT Battens IP65 IK08

SHIELDTRI: Exterior LED Waterproof Dual Power & Tri-CCT Battens IP65 IK08

  • Input voltage range: 220-240V 50Hz
  • Inbuilt Constant Current LED driver
  • Housing & diffuser: PC
  • Tri-CCT (3000K/ 4000K/ 5000K) in one fitting
  • Tri-CCT switch on internal driver
  • Wattage switch inside driver
  • LED chips: 120pcs or 240pcs SMD2835
  • CRI: >80
  • Power factor: 0.9
  • Ambient temperature: -20 to 40°C
  • Suitable for 2-way switching
  • Suitable for use with 3 wire motion or Microwave sensors
  • Includes: 2xMounting brackets(Stainless steel grade 304); 1xConnector(IP65)
  • IP rating: IP65
  • IK rating: IK08
  • Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Wattage
Part No: SHIELDTRI1

156 in stock

View full details

Part No: SHIELDTRI1
Description: BATTEN LED TRI W/PROOF S/M 9W/18W 660mm IP65 1000Lm/2000Lm
Colour: Housing: Light Grey;
Material: Diffuser: Polycarbonate; Housing: Polycarbonate;
Input Voltage: 220-240V AC
Lamp Holder: -
Globe Included: -
Wattage: 9W / 18W
Kelvin: 3000K / 4000K / 5000K
Lumens: 800lm, 1600lm / 1000lm, 2000lm / 900lm, 1800lm
Beam Angle: 110 Degree
Power Factor: 0.9
CRI: >80

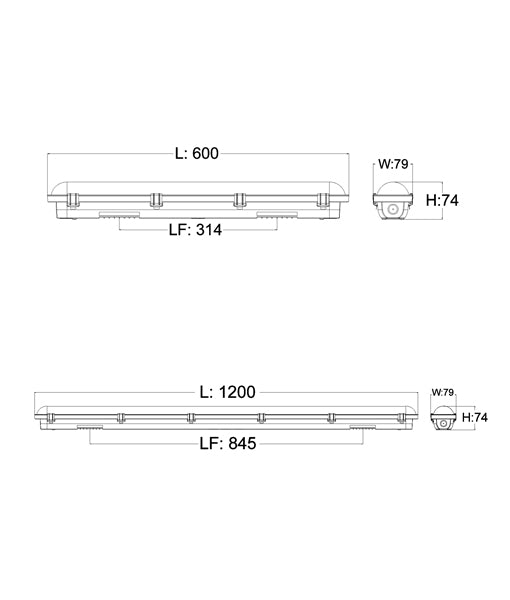

Diameter / Width: 600mm
Height: 74mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 65x8x9cm
Box Weight: 0.95kg
Carton Qty:
