SENS012-013: Adjustable Infrared PIR Surface Mounted Sensors IP44

SENS012-013: Adjustable Infrared PIR Surface Mounted Sensors IP44

  • Input voltage: 220-240V 50/60Hz
  • Surface mounted
  • Housing: PC
  • Detection range: 180°
  • Detection distance: 12m max(<24°C)
  • Detection motion speed: 0.6-1.5m/s
  • Rated load: 1200W HAL/ 600W CFL/ 600W LED
  • Time delay: min.10sec±3sec; max.15min±2min (restarts from last movement)
  • Ambient light: <3-2000lux (adjustable)
  • Ambient Temp: -20 to 40°C
  • Working humidty: <93%RH
  • Power consumption: approx. 0.5W
  • Installation height: 1.8-2.5m
  • 3 wired
  • UV resistant
  • Day/Night recognition
  • Manual override
  • IP rating: IP44
  • Warranty: 5 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Colour

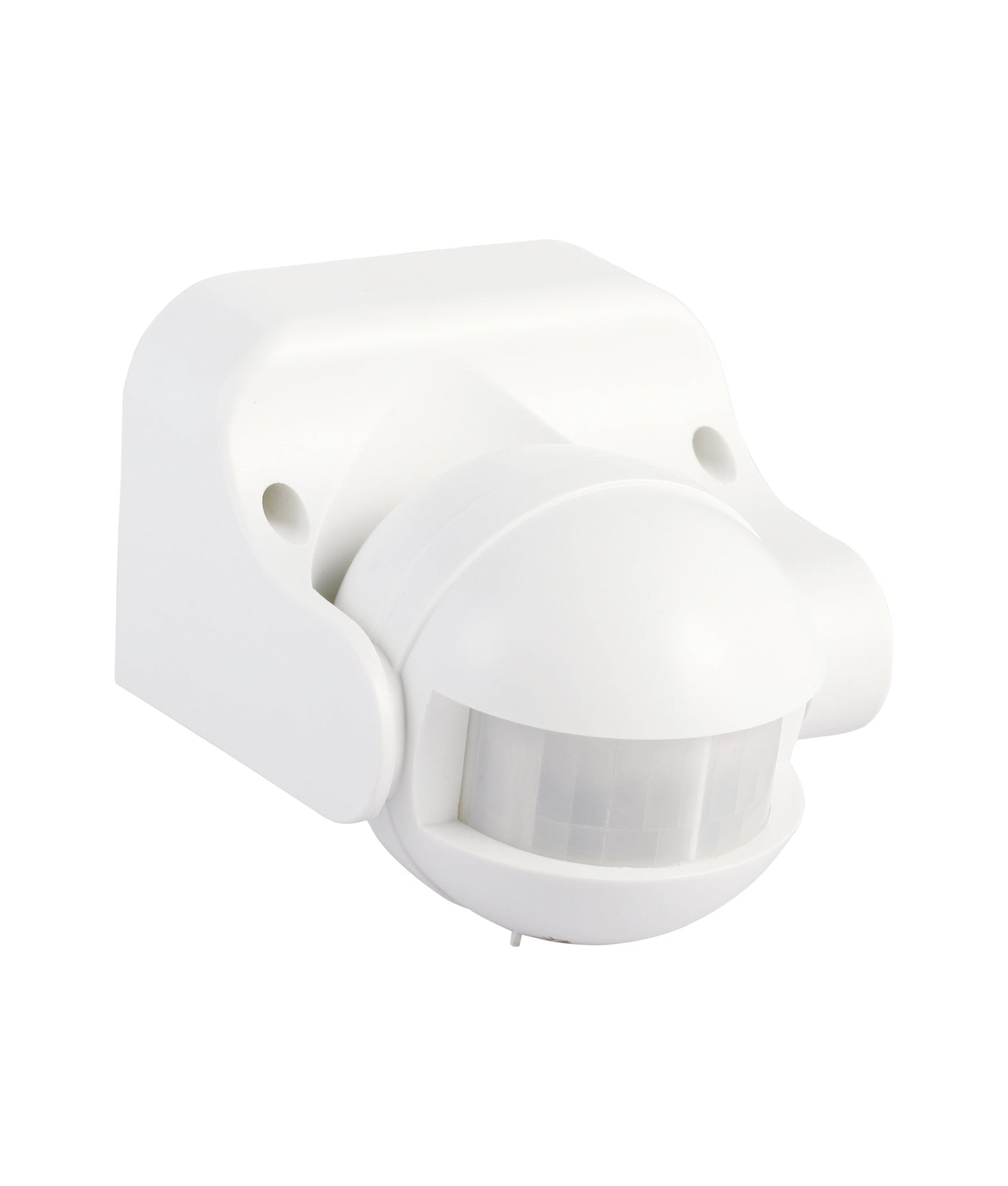

Part No: SENS012

490 in stock

View full details

Part No: SENS012
Description: SENSOR Adjustable Infrared Motion S/M WH 3 Wire 180D (Det Dist 12m max) (I/Height 1.8- 2.5m) IP44 WTY 5YR
Colour: White
Material: PC
Input Voltage: 220-240V 50/60Hz
Lamp Holder: -
Globe Included: -
Wattage: 0.5W
Kelvin: -
Lumens: -
Beam Angle: -
Power Factor: -
CRI: -

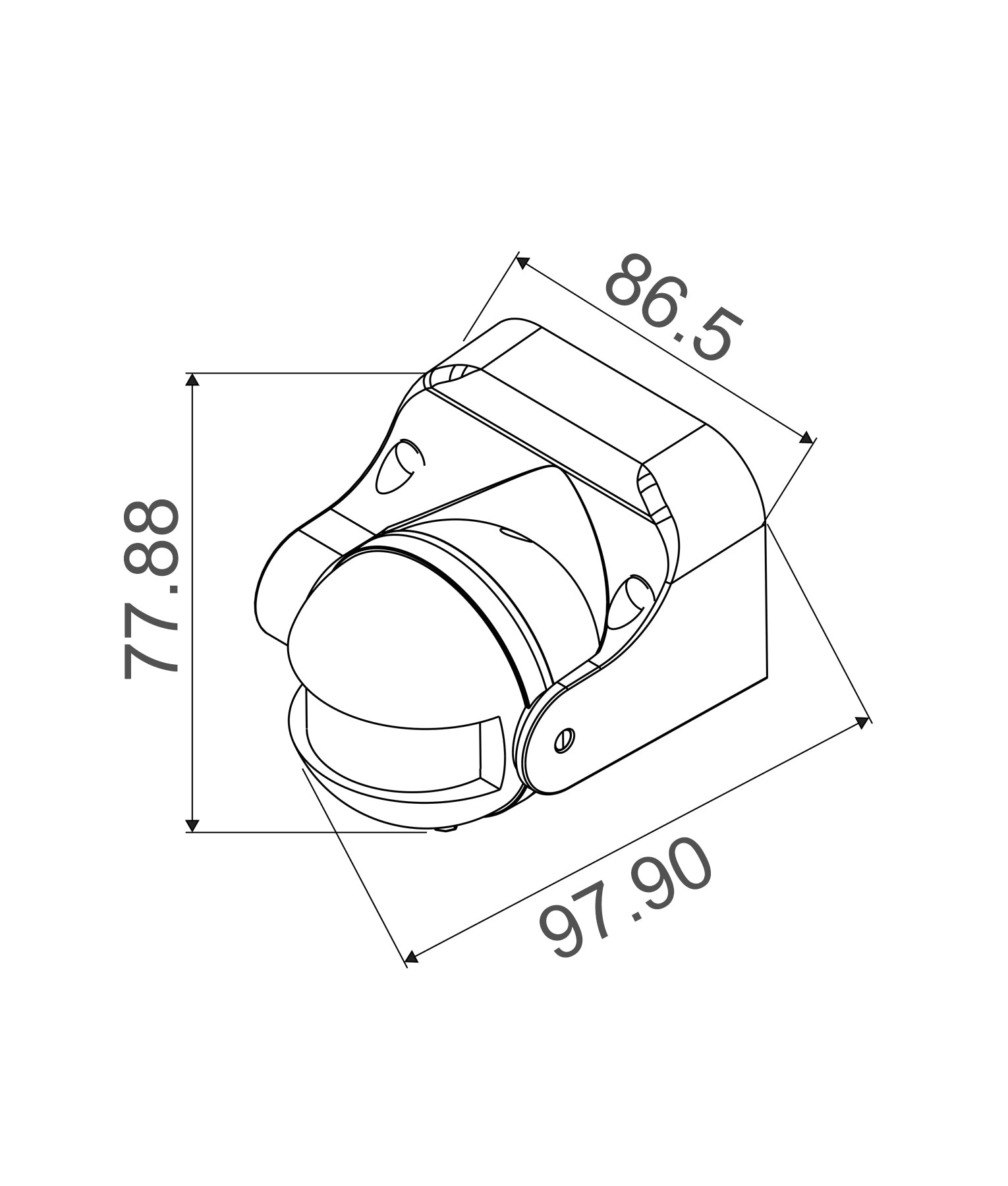

Diameter / Width: 86.5mm
Height: 77.88mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 9x8x11cm
Box Weight: 0.15kg
Carton Qty: 1/50
