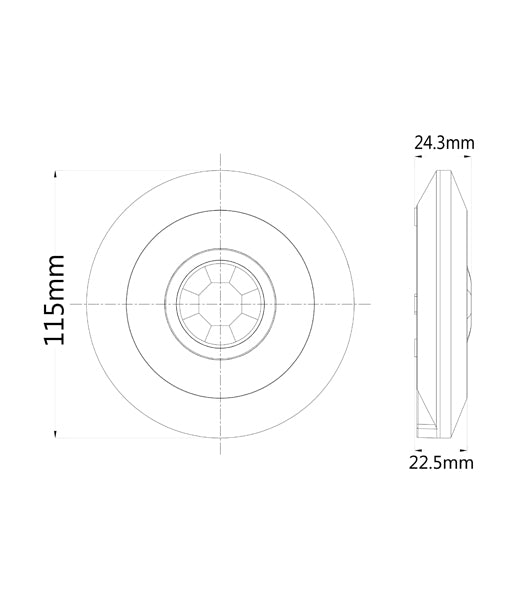

SENS004: Infrared Surface Mounted Motion Sensors IP20

SENS004: Infrared Surface Mounted Motion Sensors IP20

  • Input voltage: 220-240V 50/60Hz
  • Suitable for use with LED
  • 3 wired
  • UV resistant
  • Surface mounted
  • Large detection range
  • Housing: PC
  • Detection range: 360°
  • Detection distance: 6m max(<24°C)
  • Detection motion speed: 0.6-1.5m/s
  • Rated load: 2000W HAL/ 1000W CFL/ 1000W LED (If lamp higher than 60W is used the distance between lamp & sensor should be a minimum of 60cm)
  • Time delay: min.10sec±3sec; max.15min±2min
  • Ambient light: <3-2000lux (adjustable)
  • Installation height: 2.2-4m
  • IP rating: IP20
  • Warranty: 5 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Part No: SENS004

461 in stock


Search the closest store near you to buy CLA Products
View full details

Part No: SENS004
Description: SENSOR FIXED I/Motion 3 Wire 2000W RND Wh IP20
Colour: -
Material: -
Input Voltage: 220-240V AC
Lamp Holder: -
Globe Included: -
Wattage: -
Kelvin: -
Lumens: -
Beam Angle: -
Power Factor: -
CRI: -
Diameter / Width: -
Height: -
Cut out: -
Canopy: -
Suspension: -
Box Size: 13x12x4cm
Box Weight: 0.15kg
Carton Qty:
