WIG: Exterior LED Up/Down Adjustable Beam Angle Surface Mounted Wall Lights IP65

WIG: Exterior LED Up/Down Adjustable Beam Angle Surface Mounted Wall Lights IP65

  • Exterior Surface mounted up/down LED wall lights
  • Input voltage range: 100-240V AC 50/60Hz
  • Driver output voltage range: 18-42V
  • Driver input current: 0.053A
  • Driver output current: 300mA
  • Inrush current: 1.2A
  • Housing: powder coated aluminium
  • Bracket: PC
  • LED chip: 2pcs 5050
  • Power factor: >0.5
  • 2 stickers included which allow narrowing of beam angle at both or either end
  • Beam angle: without sticker is 69.9° and with the sticker is 32.7°
  • Ambient temperature: -20 to 50°C
  • Suitable for 2-way switching
  • Suitable for use with PIR or Microwave sensors
  • IP rating: IP65
  • Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.
Colour
Part No: WIG1

Low stock: 1 left


Search the closest store near you to buy CLA Products
View full details

Part No: WIG1
Description: WALL S/M Up/Dn 11W WEDGE Dark Grey 3K IP65 Alt Beam 550 Lm
Colour: Housing: Dark Grey;
Material: Diffuser: Glass; Housing: Aluminium; Mount: Polycarbonate;
Input Voltage: 100-240V AC
Lamp Holder: -
Globe Included: -
Wattage: 11W
Kelvin: 3000K
Lumens: 550lm
Beam Angle: Without sticker: 69.9 degree; with sticker: 32.7 degree
Power Factor: 0.5
CRI: >80

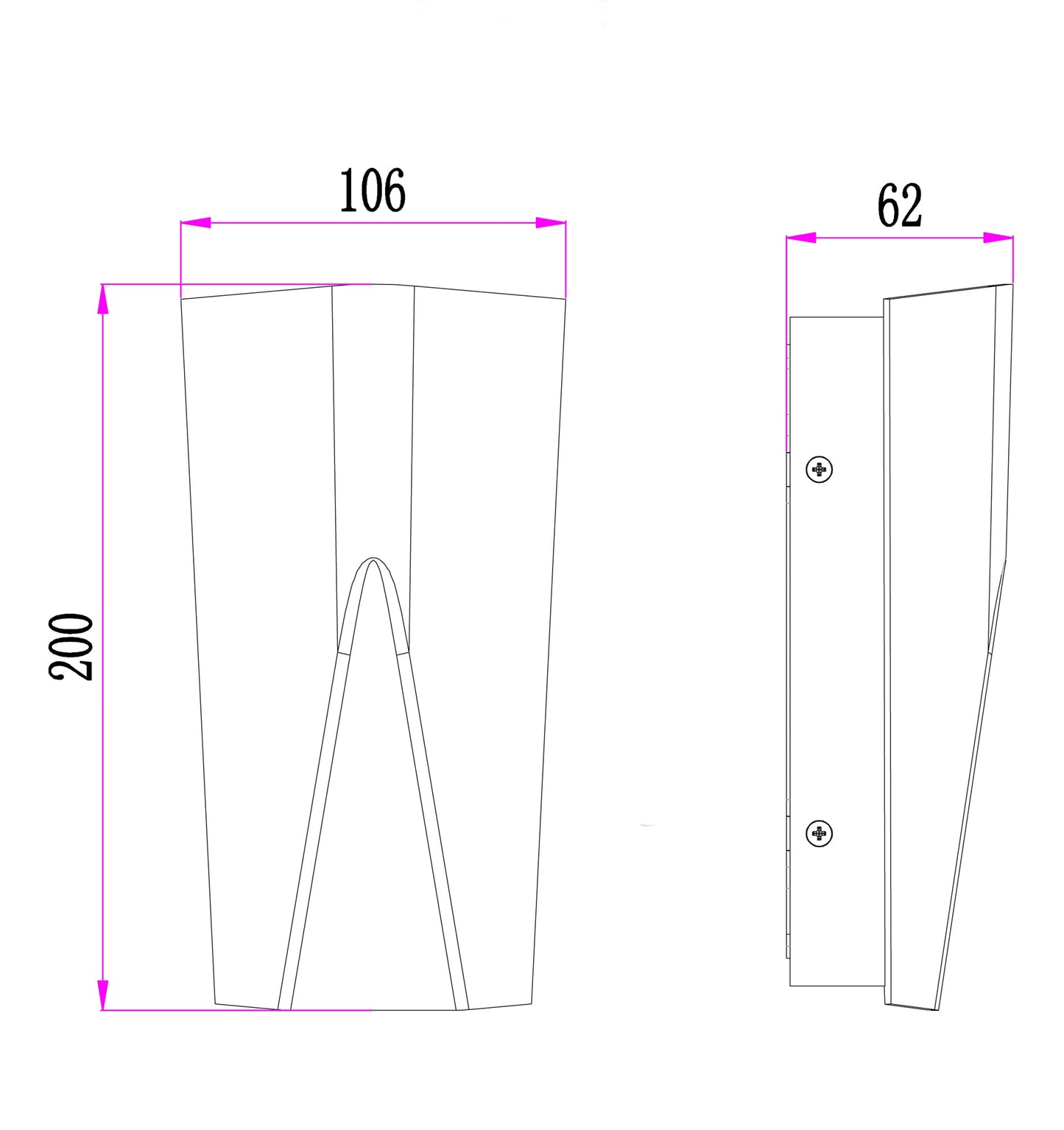

Diameter / Width: 106mm
Height: 200mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 21x12x8cm
Box Weight: 0.85kg
Carton Qty:
