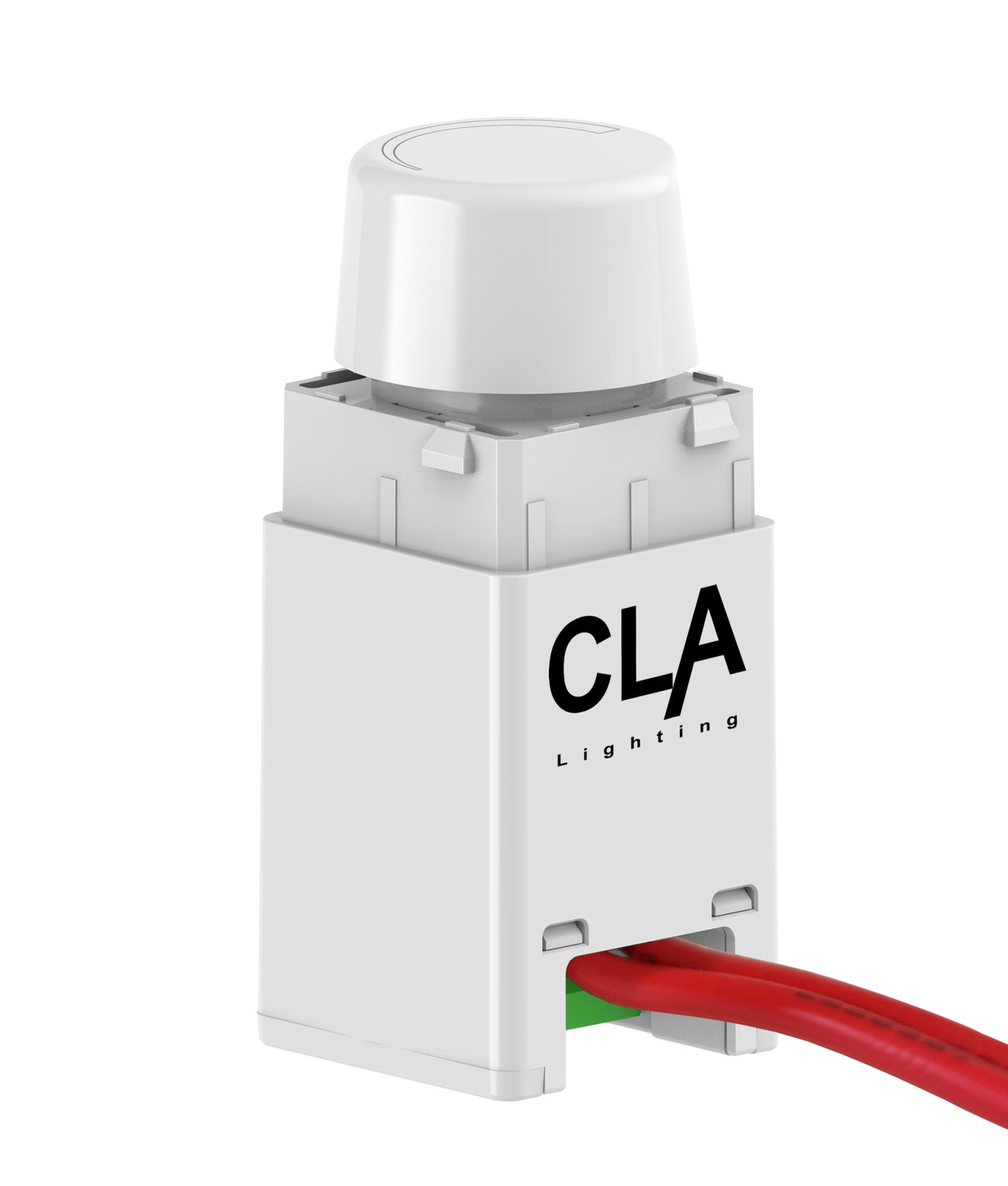

LYNX1: Trailing Edge Rotary Dimmer

LYNX1: Trailing Edge Rotary Dimmer

  • Fits Australian standard wall switch plate apertures (eg. the trader ranges, plus HPM, Legrand and Clipsal ranges)
  • Separately switched 2-wire design-no neutral wire connection required for wall plate retrofit installation
  • Inbuilt overload protection and short circuit protection
  • Incorporates a thermal fuse
  • Rotary control
  • Protected against damage from connection to incompatible inductive load types (ig. motor loads), via conduction angle wind-back
  • Complies with all relevant Australian standards
  • "Soft-start" help prolong lamp and driver life
  • Rated power: 300W
  • Operating temperature: 0 to 35°C
  • Warranty: 3 year replacement warranty

Product Application:

  • Can directly replace the existing wall switch to adjust dimmable LED lamp, halogen lamp and dimmable CFL.
  • Suitable for public places such as family bedroom. apartment, hotel, and hospital and so on.
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)
Part No: LYNX1

258 in stock

Please search the closest store near you to buy CLA Lighting Products.
View full details

Part No: LYNX1
Description: DIMMER TRAILING EDGE Rotary Universal 3-300W (LED / HAL / CFL and INCAND) (LED/CFL - Max Load 200W) WTY 3YR
Colour: White
Material: PC
Input Voltage: 220-240V 50Hz
Lamp Holder: -
Globe Included: -
Wattage: 300W
Kelvin: -
Lumens: -
Beam Angle: -
Power Factor: -
CRI: -

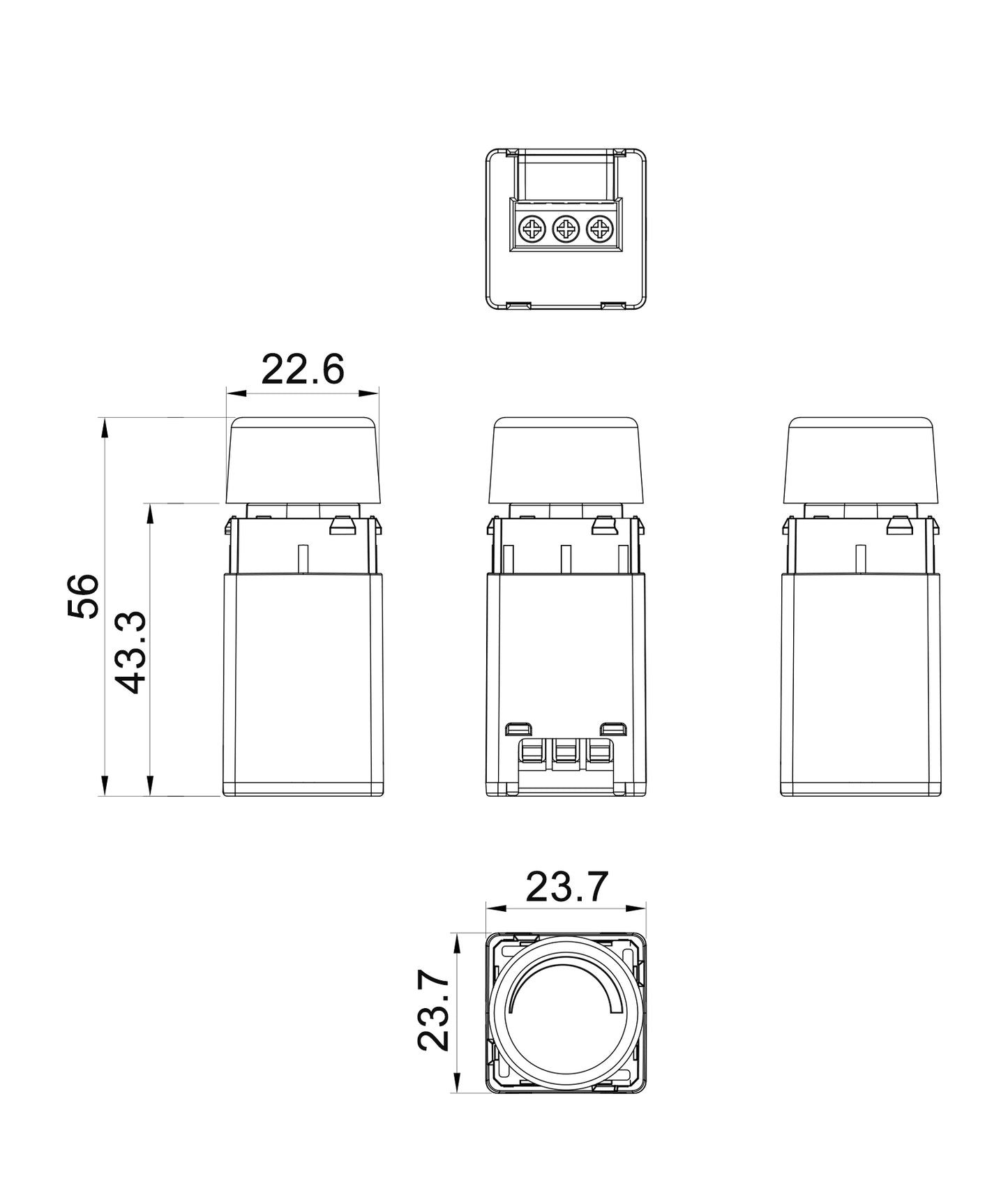

Diameter / Width: 22.6mm
Height: 43.3mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 3x3x5.5cm
Box Weight: 0.03kg
Carton Qty: 1/300
