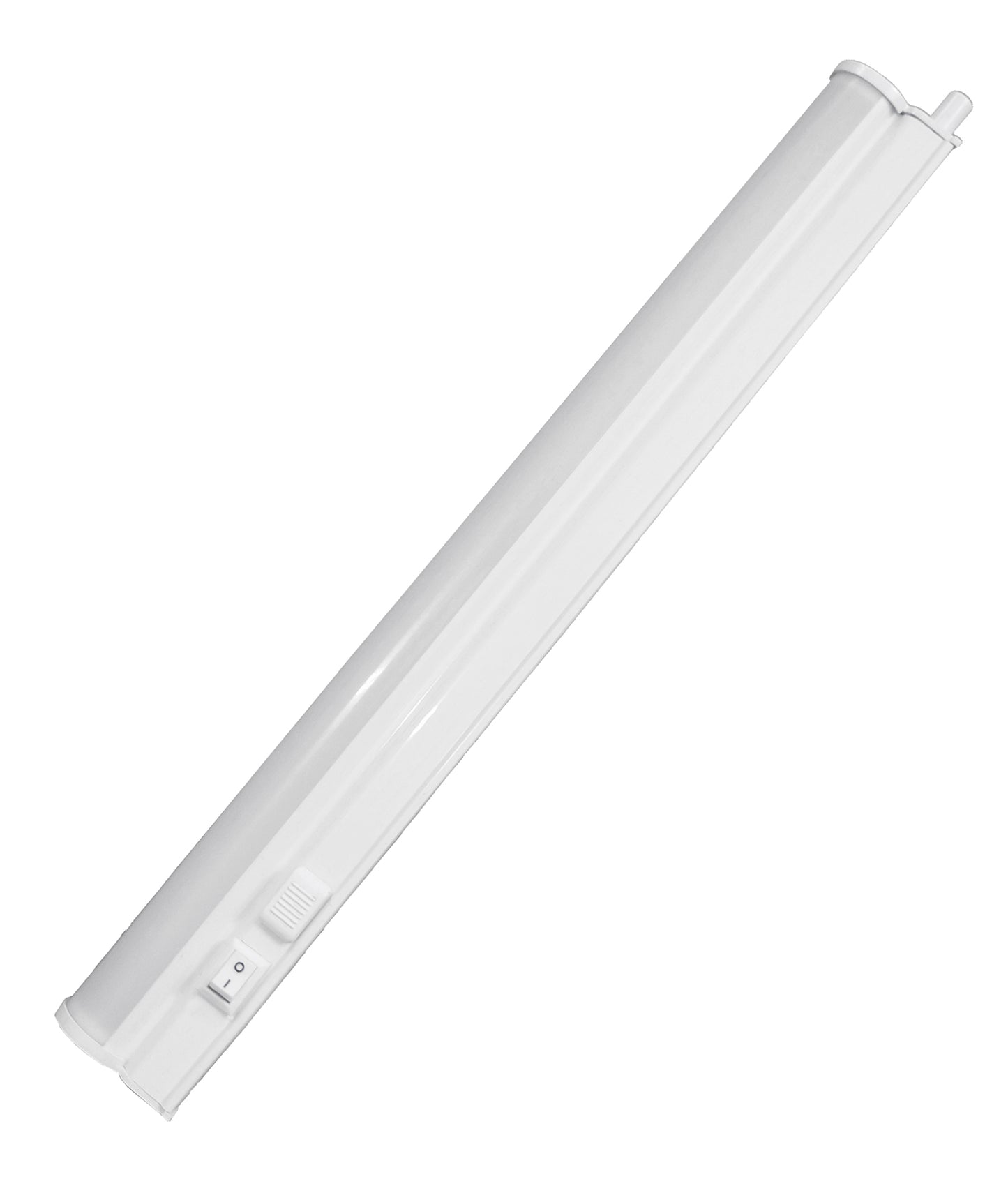

LINKTRI: Interior LED Tri-CCT Linkable T5 Slimline Utility Lights
LINKTRI: Interior LED Tri-CCT Linkable T5 Slimline Utility Lights
- Interior Tri-CCT linkable slimline LED lights
- Input voltage range: 220-240V AC 50/60Hz
- Inbuilt driver
- Housing: PC
- Mounting bracket: aluminium
- LED chips: SMD2835
- Tri-CCT in one fitting: 3000K / 4000K / 5700K
- Slide switch on side
- CRI: ≥80
- Power factor: >0.9

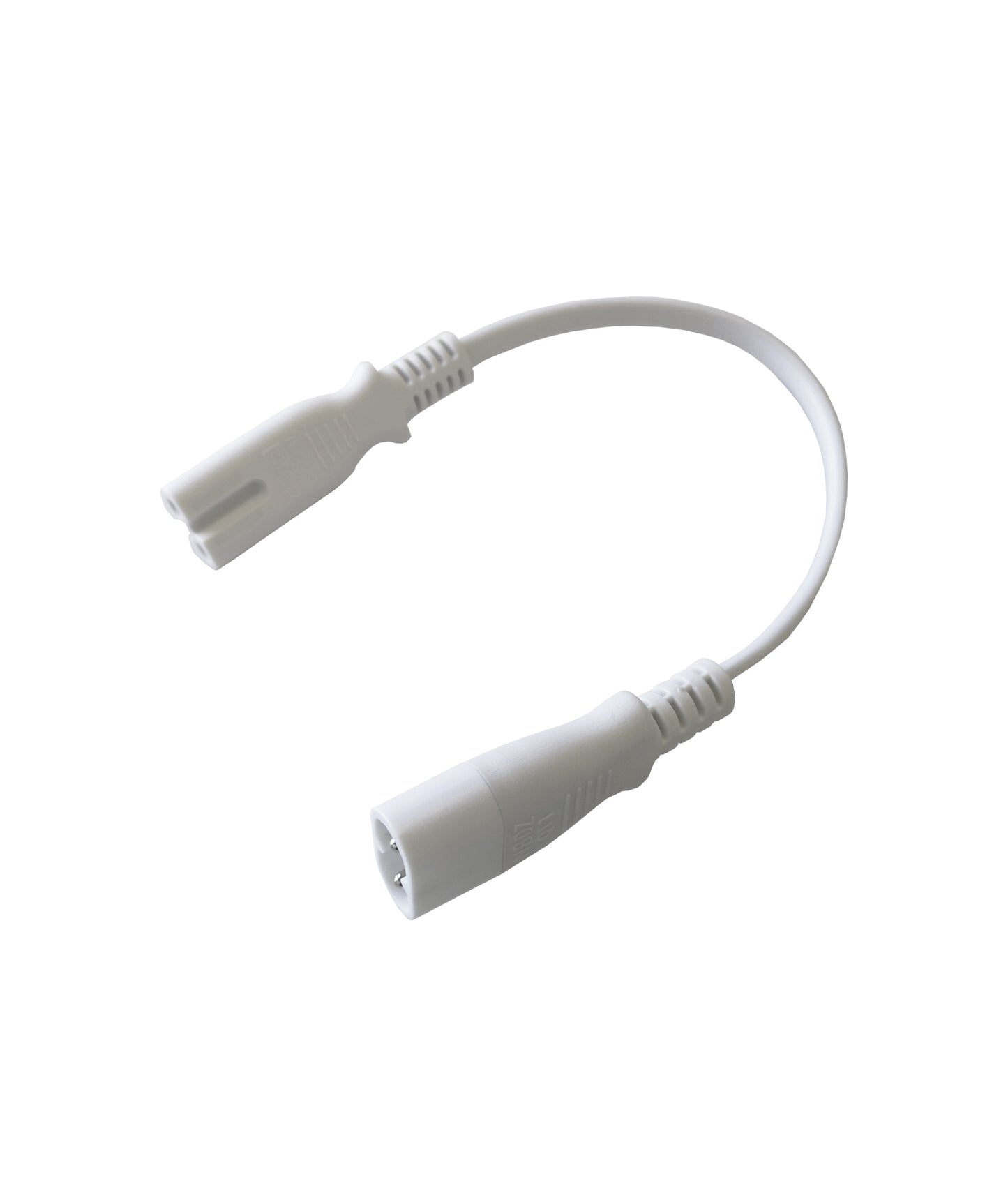

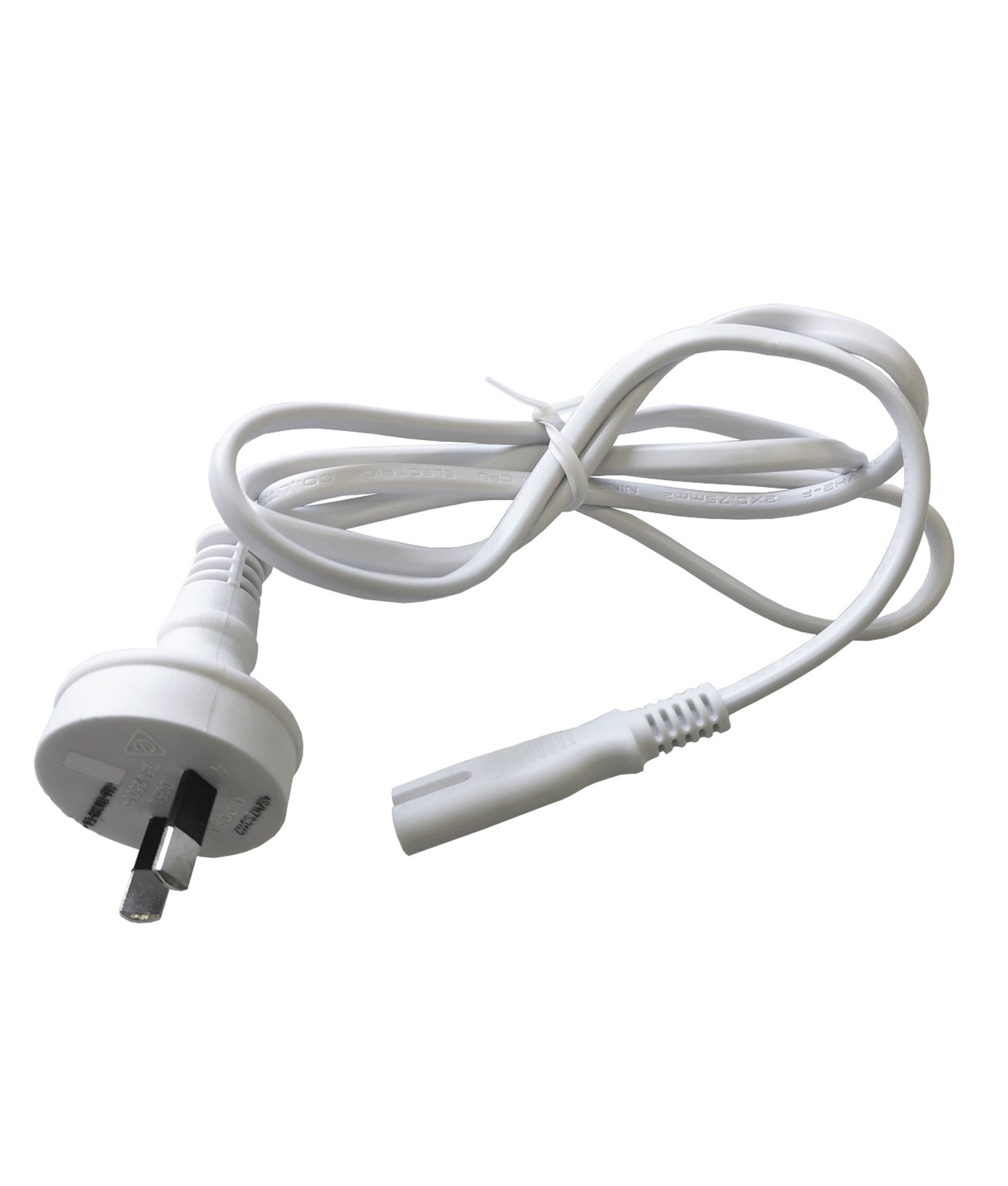

- Flex & plug and connecting cables sold separately

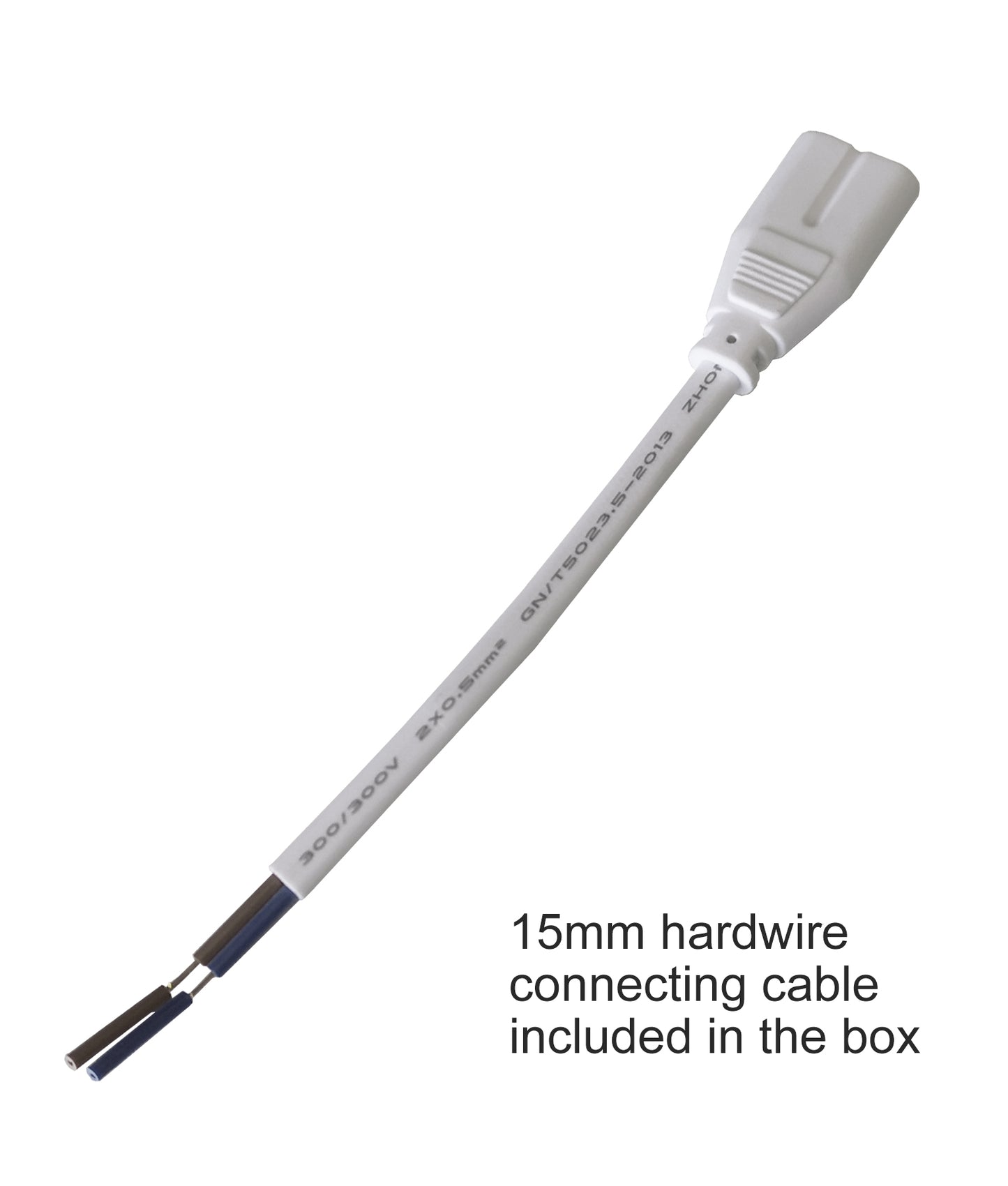

- Hardwire connecting cable and mounting bracket included in the box
- Not suitable for dimming
- Ambient temperature: -15 to 40°C
- IP20
- Double insulated
- Note: All LINKTRI models can be used together. Maximum connection wattage: 150W
- Warranty: 3 year replacement warranty
*DIY when using Flex & Plug and a licensed Electrician is required if hard wired
153 in stock
Product Attachments
Brochure: LINKTRI01-03(713.71 KB)
Technical Spec: LINKTRI01-03(120 KB)
IES: LINKTRI01_3000K(3.72 KB)
IES: LINKTRI01_4000K(3.72 KB)
IES: LINKTRI01_5700K(3.72 KB)
IES: LINKTRI02_3000K(3.73 KB)
IES: LINKTRI02_4000K(3.73 KB)
IES: LINKTRI02_5700K(3.73 KB)
IES: LINKTRI03_3000K(3.73 KB)
IES: LINKTRI03_4000K(3.73 KB)
IES: LINKTRI03_5700K(3.73 KB)
Part No: LINKTRI01
Description: BATTEN LINKABLE LED Slim 4W Tri Wh 322mm 400 Lm
Colour: Housing: White;
Material: Diffuser: Polycarbonate; Housing: Polycarbonate; Mount: Aluminium;
Input Voltage: 220-240V AC
Lamp Holder: -
Globe Included: -
Wattage: 4W
Kelvin: 3000K / 4000K / 5700K
Lumens: 380lm / 420lm / 400lm
Beam Angle: 150 Degree
Power Factor: 0.9
CRI: 80
Diameter / Width: 37mm
Height: 322mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 34x4x3cm
Box Weight: 0.11kg
Carton Qty:
