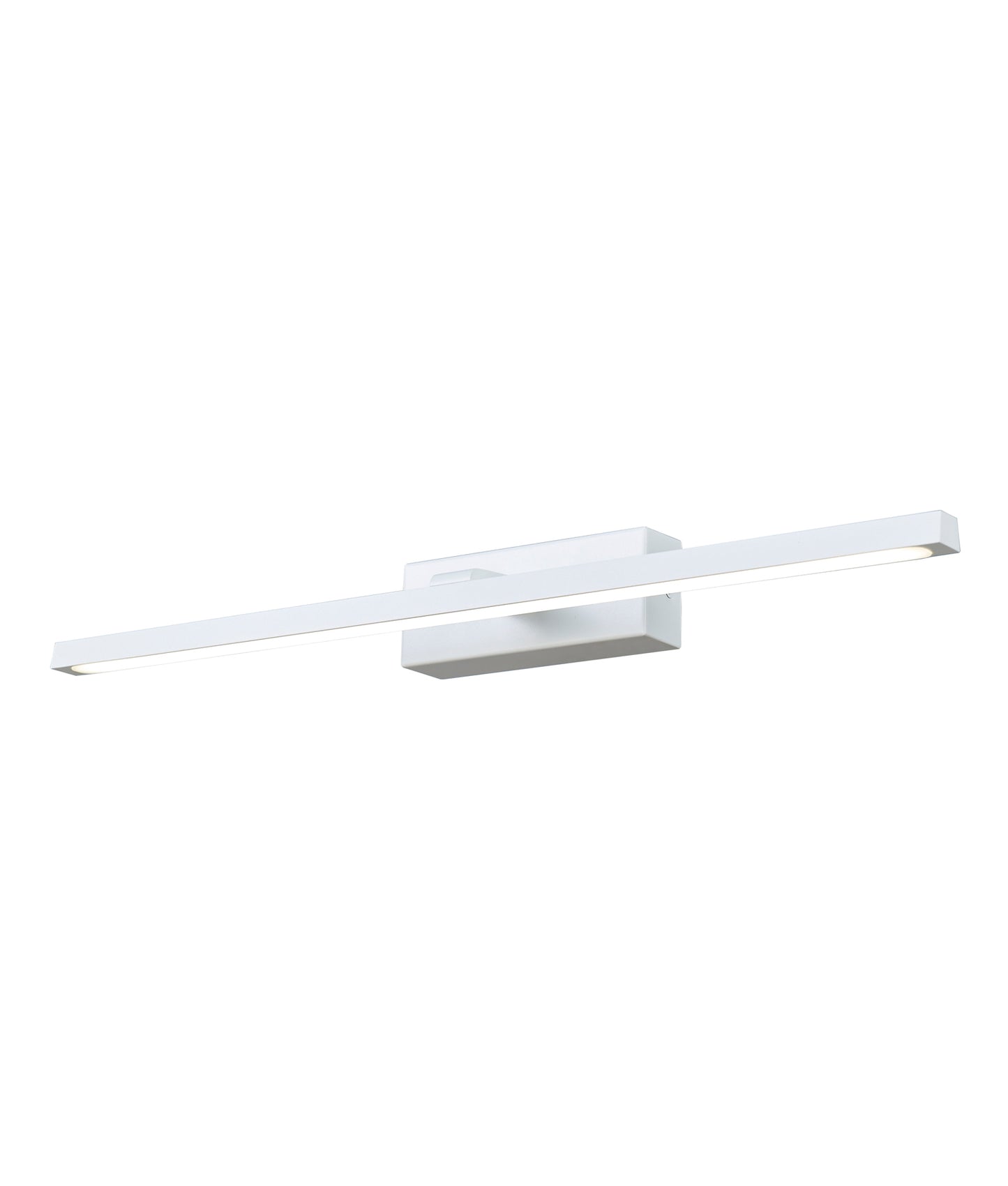

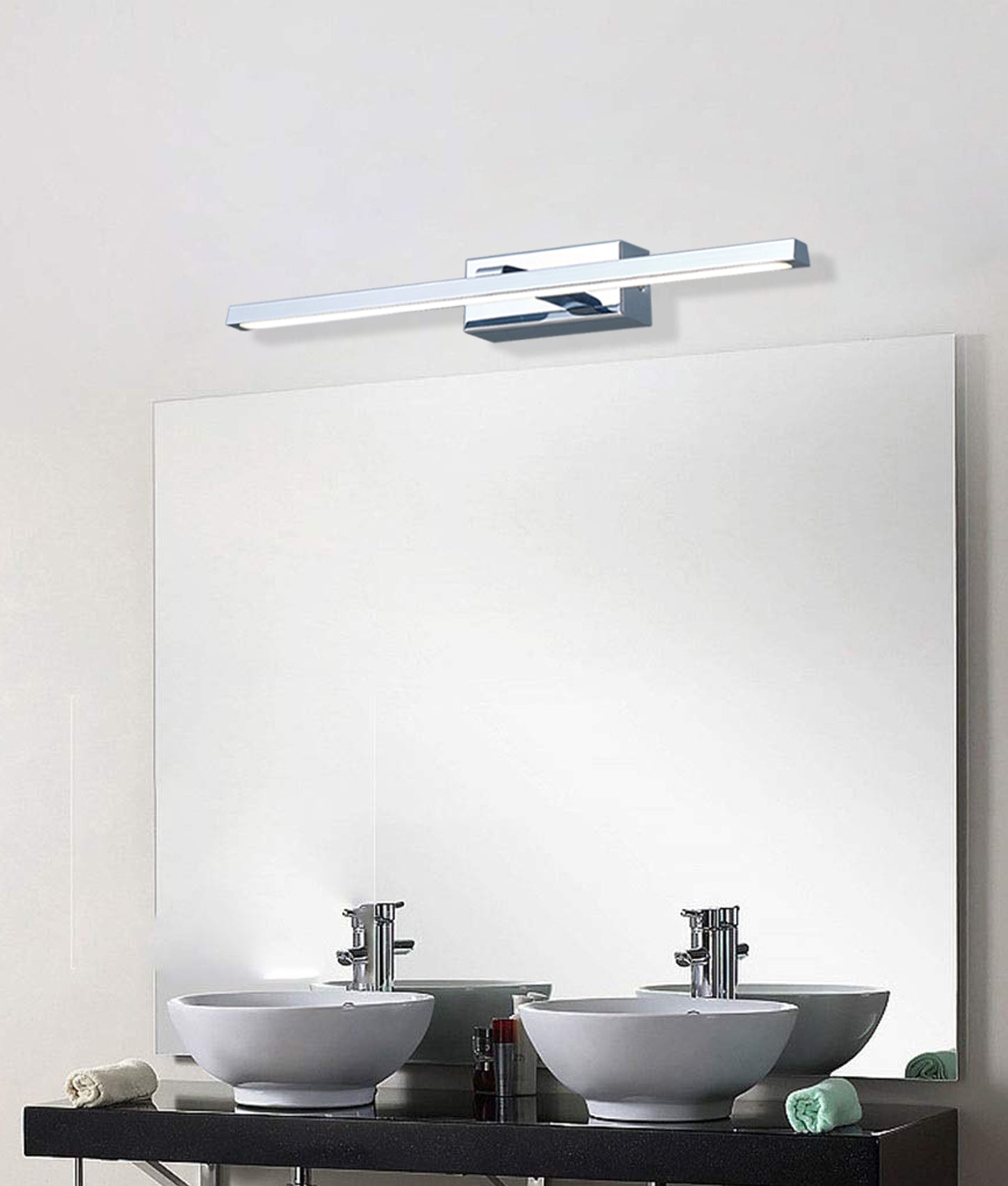

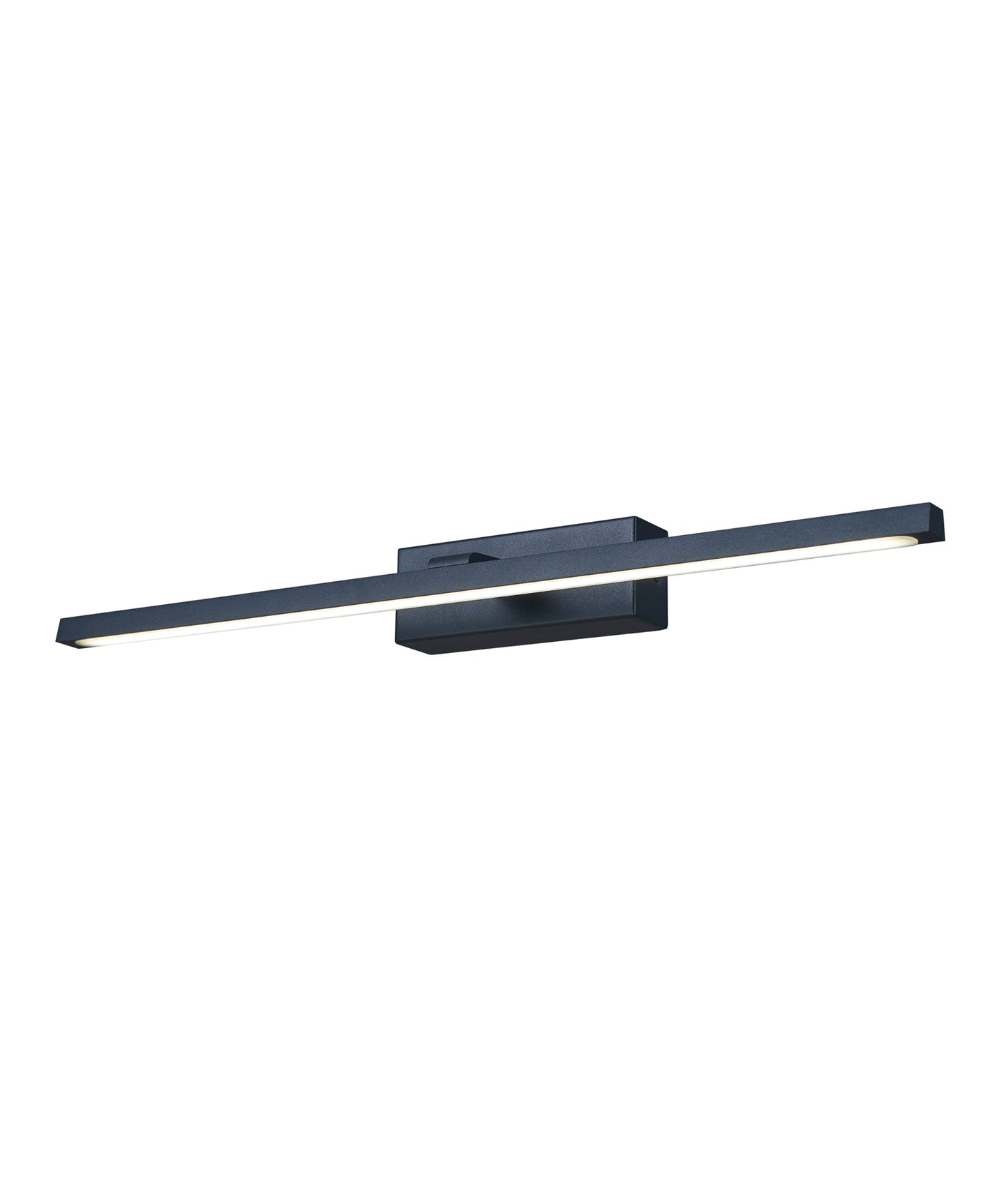

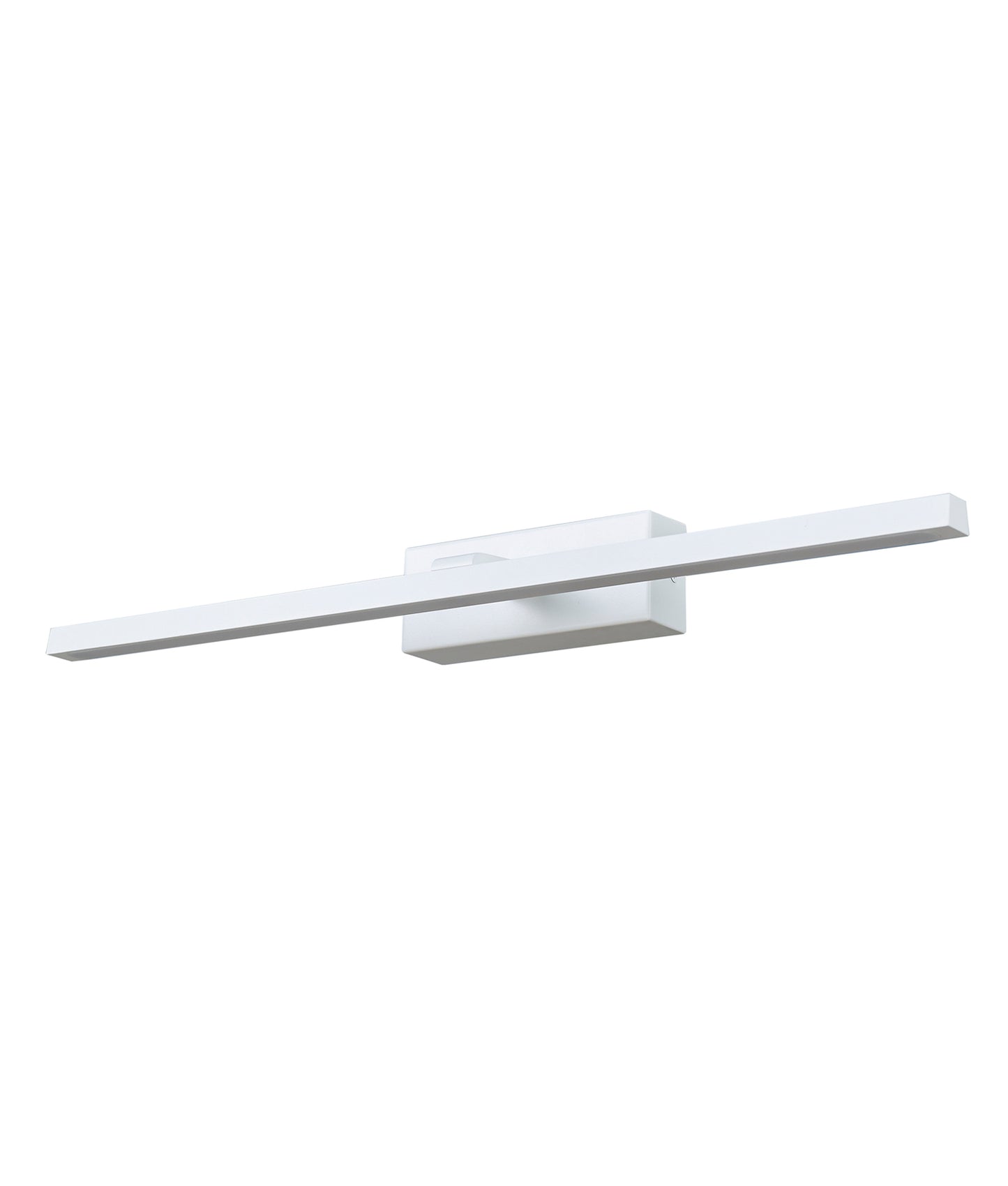

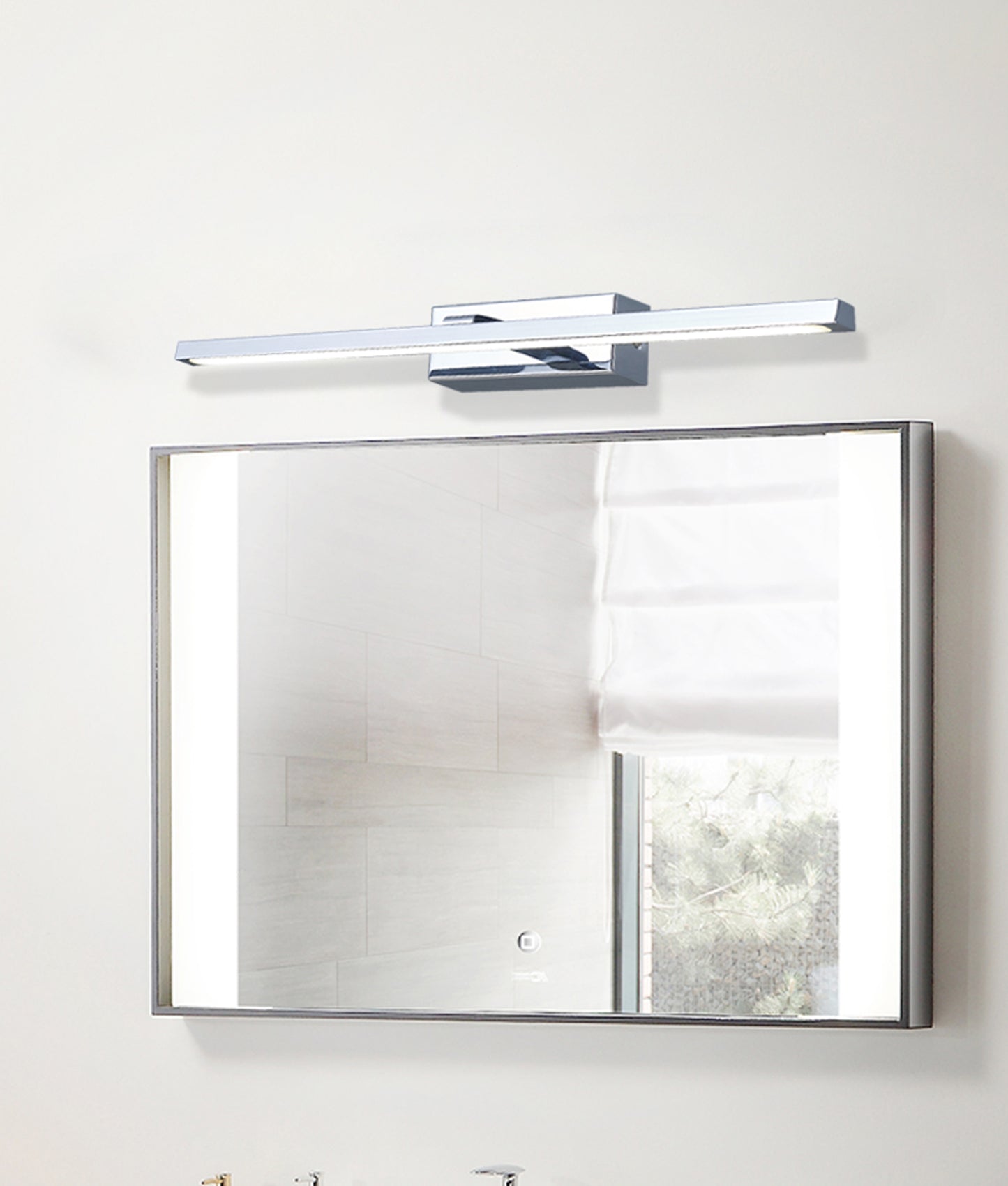

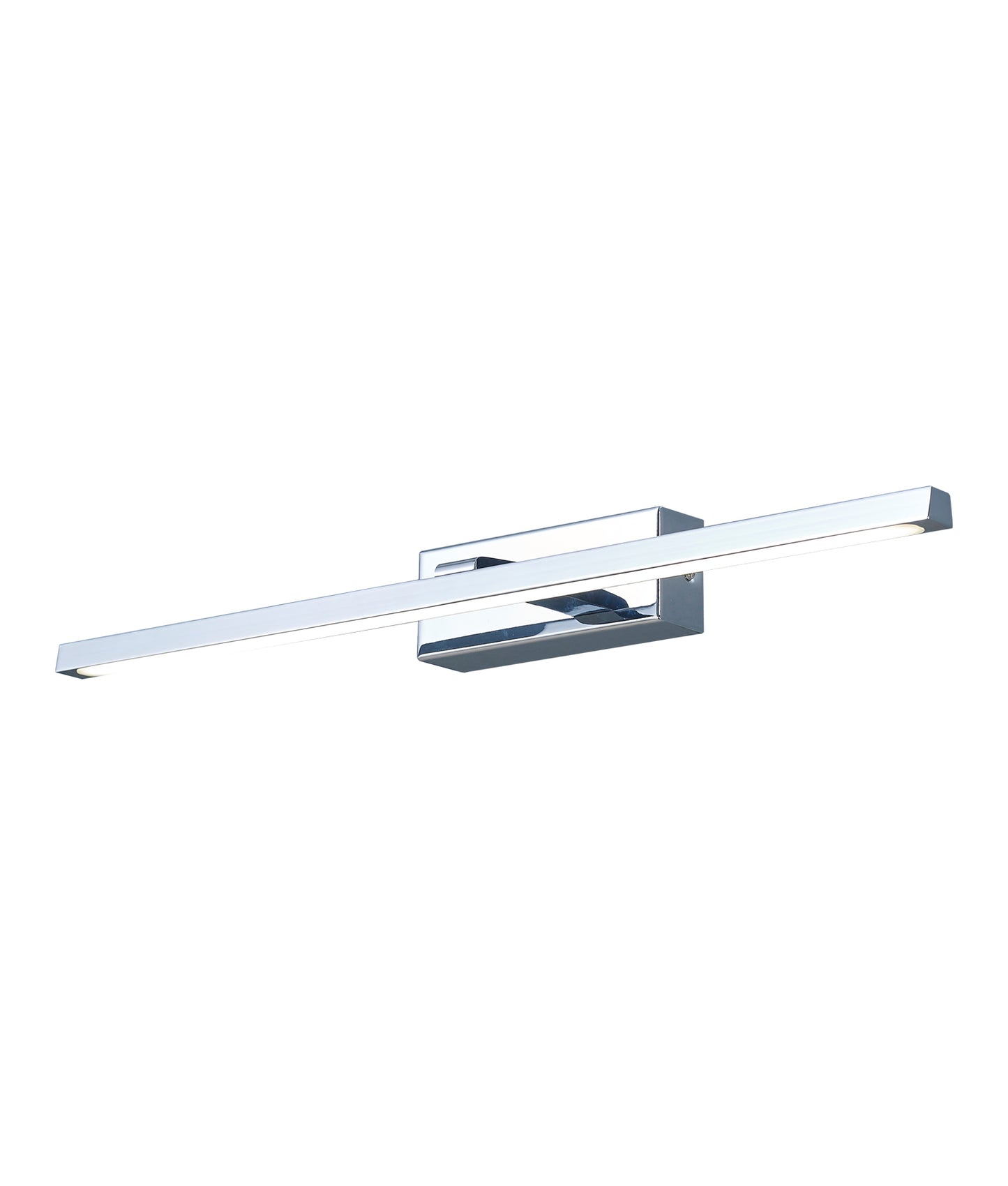

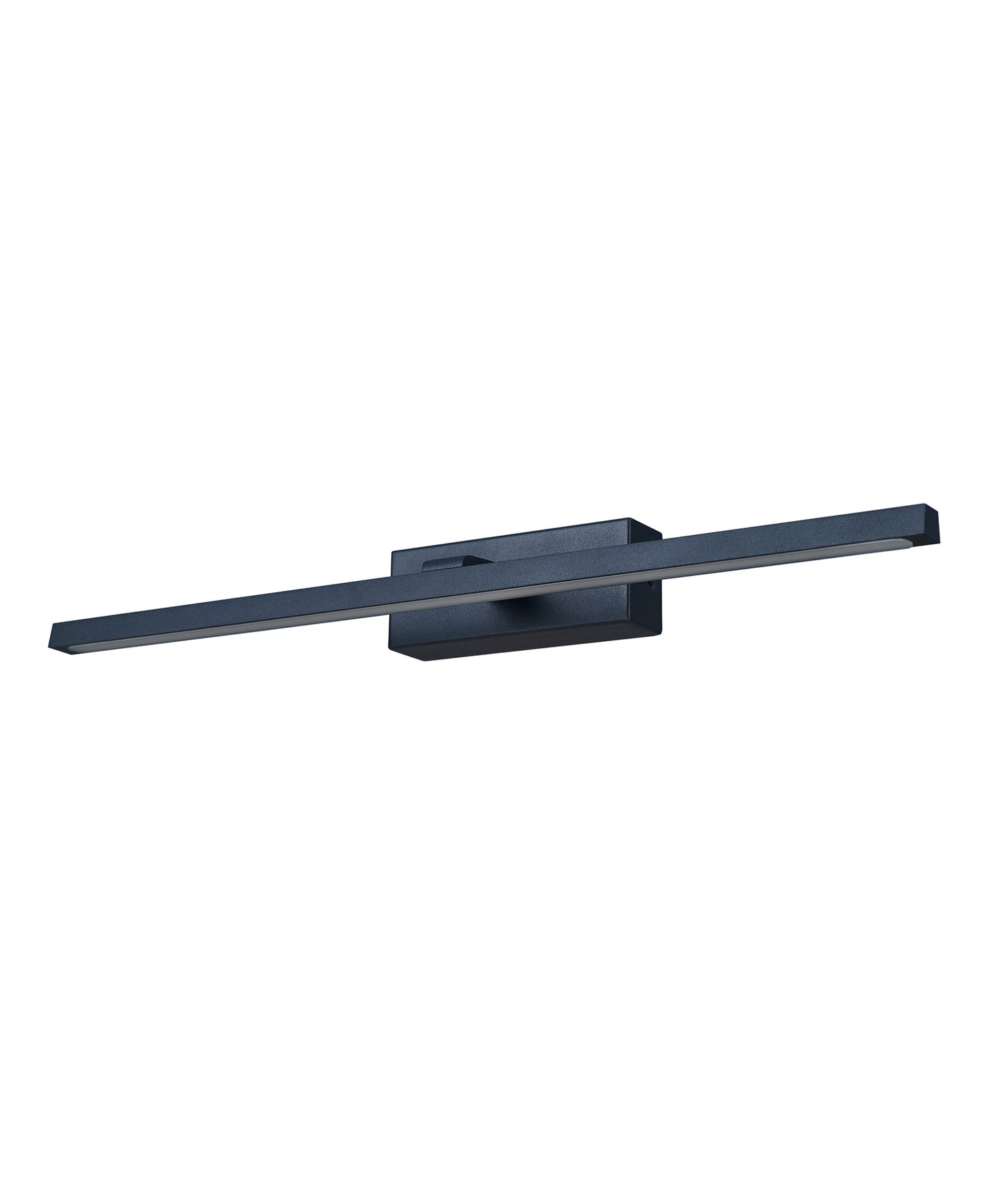

LINEAL: Interior LED Tri-CCT Dimmable Vanity / Picture Wall Lights IP44 (L695mm)

LINEAL: Interior LED Tri-CCT Dimmable Vanity / Picture Wall Lights IP44 (L695mm)

  • Input voltage: 220-240V 50Hz
  • Housing: Aluminium
  • Mounting plate: iron
  • Diffuser: Acrylic
  • Tri-CCT (3000K / 4000K / 5700K) in one fitting
  • CCT switch inside the fitting
  • LED chips: SMD2835
  • CRI: 80
  • Power factor: 0.92
  • Ambient temp: -20 to 50°C
  • Suitable for dimming
  • Suitable for 2 way switching
  • Suitable for use with sensors
  • IP rating: IP44

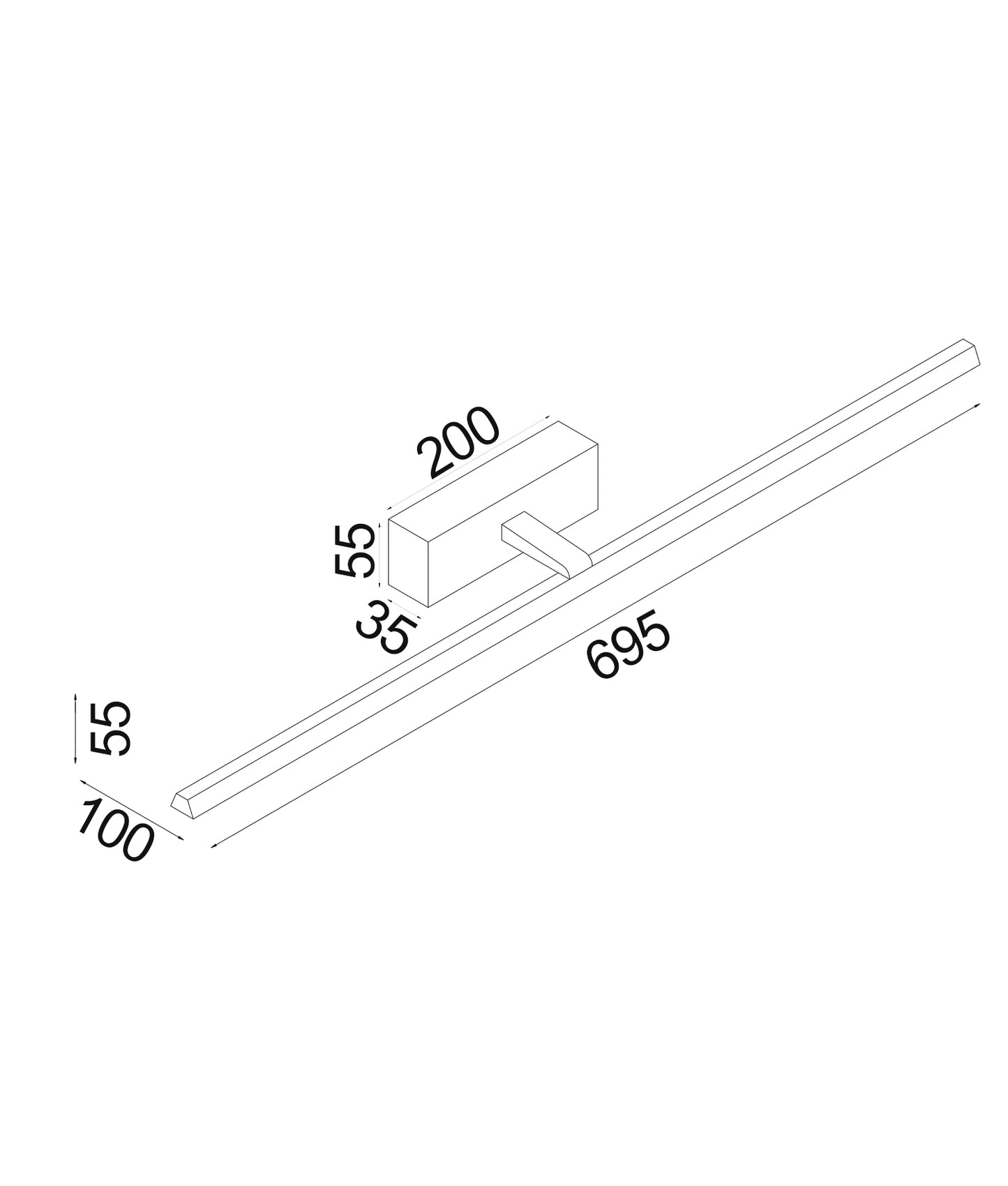

  • For more product dimension details, please see product technical spec sheet.
  • Warranty: 2 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

For Tested and Recommended Dimmers:

  • CLA-Trailing Edge: LYNX1; VELA
  • Clipsal-Universal: 32E450UDM, 31E2PUDM
  • Clipsal-Trailing Edge: 32ELEDM-WE; 32E450TM
  • HPM-Trailing Edge: CAT250T, CAT400T
  • Diginet-LED Smart: MEDM, MMDM/RT
*Please check with Licenced electrician for Min and Max dimmer load. May be compatible with other untested dimmers
Colour
Part No: LINEAL1L

21 in stock

View full details

Part No: LINEAL1L
Description: WALL Int S/M 16W LINEAR Wh Tri Dim FR Diff L695 1531Lm
Colour: White
Material: Housing: Aluminium; Mounting plate: iron; Diffuser: Acrylic
Input Voltage: 220-240V
Lamp Holder: -
Globe Included: -
Wattage: 16W
Kelvin: 3000K / 4000K / 5700K
Lumens: 1320lm / 1531lm / 1305lm
Beam Angle: 120 Degree
Power Factor: 0.92
CRI: 80
Diameter / Width: 700mm
Height: 55mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 12x6x75cm
Box Weight: 1.50kg
Carton Qty:
