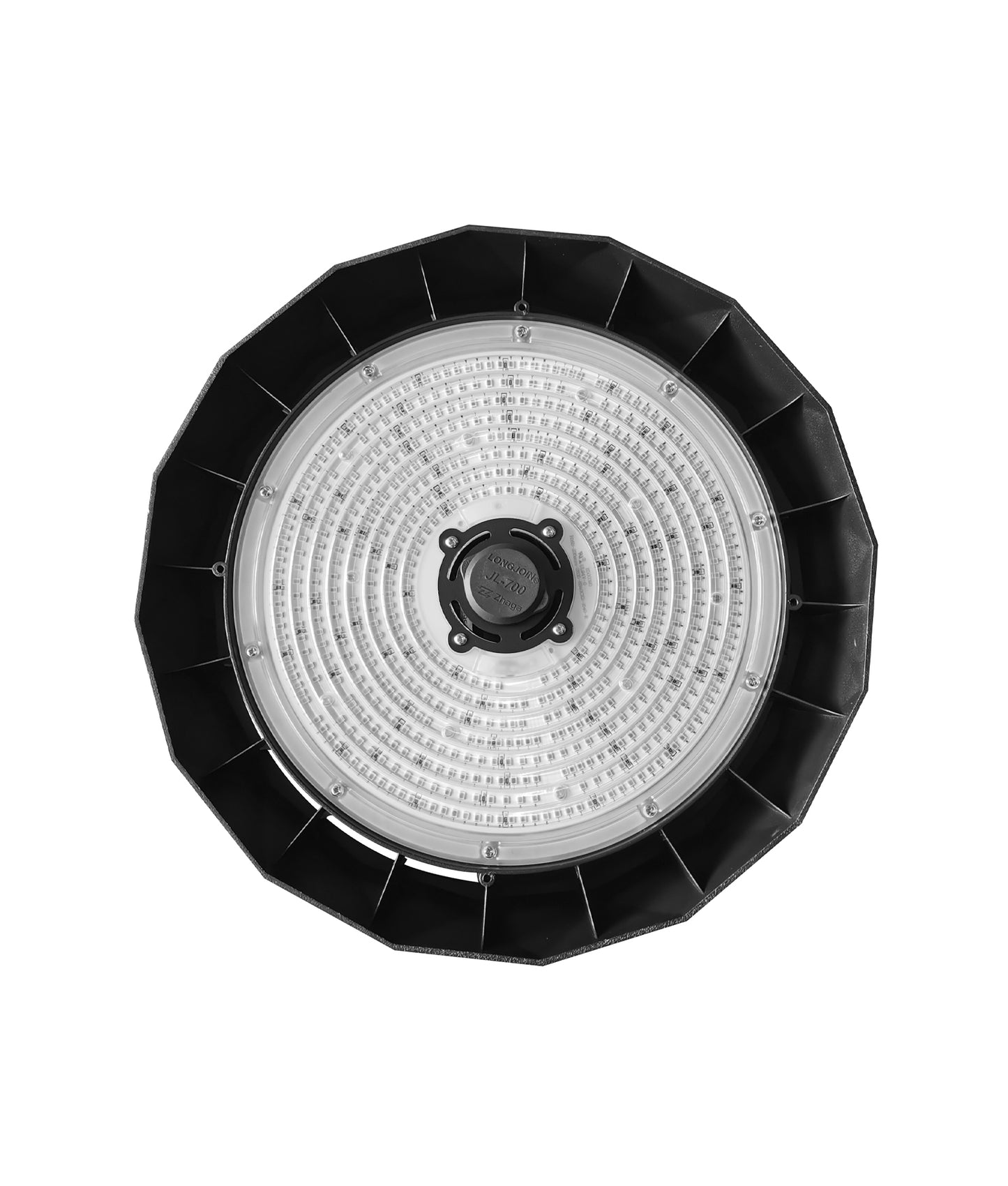

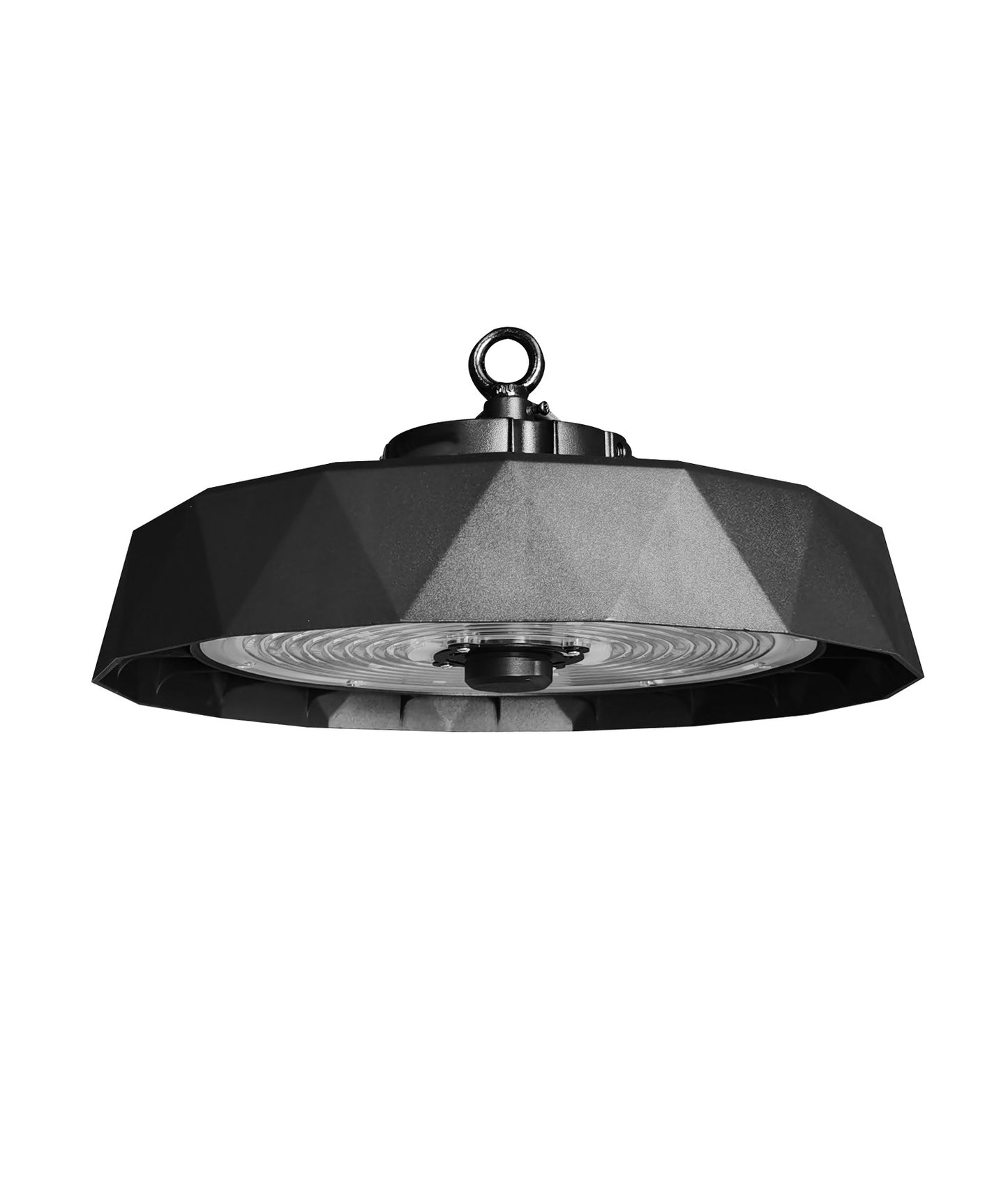

HIBTRI2: LED Power Switchable Tri-CCT High Bay (Sensor Available) IP65

HIBTRI2: LED Power Switchable Tri-CCT High Bay (Sensor Available) IP65

  • Input voltage range: 120-277V AC 50Hz
  • Constant current LED driver inbuilt
  • Housing & Faceplate: powder coated Aluminium

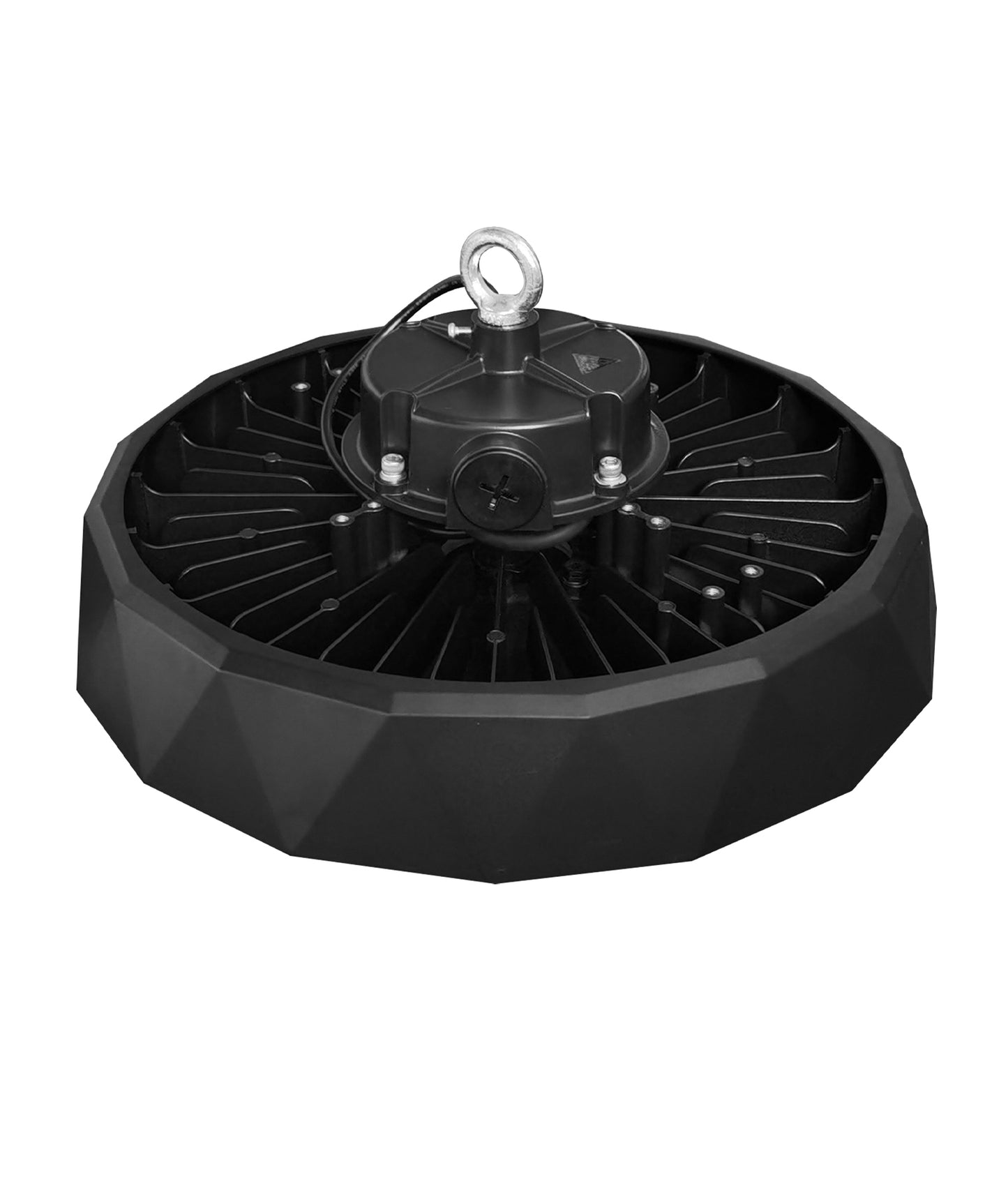

  • Heatsink: Aluminium
  • Diffuser: Clear PC
  • LED chips: 2835 LED
  • Tri-CCT (3000K/ 4000K / 5700K) in one fitting
  • Power factor: 0.95
  • Flex & plug: 1.2m
  • Ambient temperature: -20 to 50°C
  • Suitable for dimming (1-10V dimmer only)
  • Suitable for 2-way switching
  • Suitable for use with motion & microwave sensors

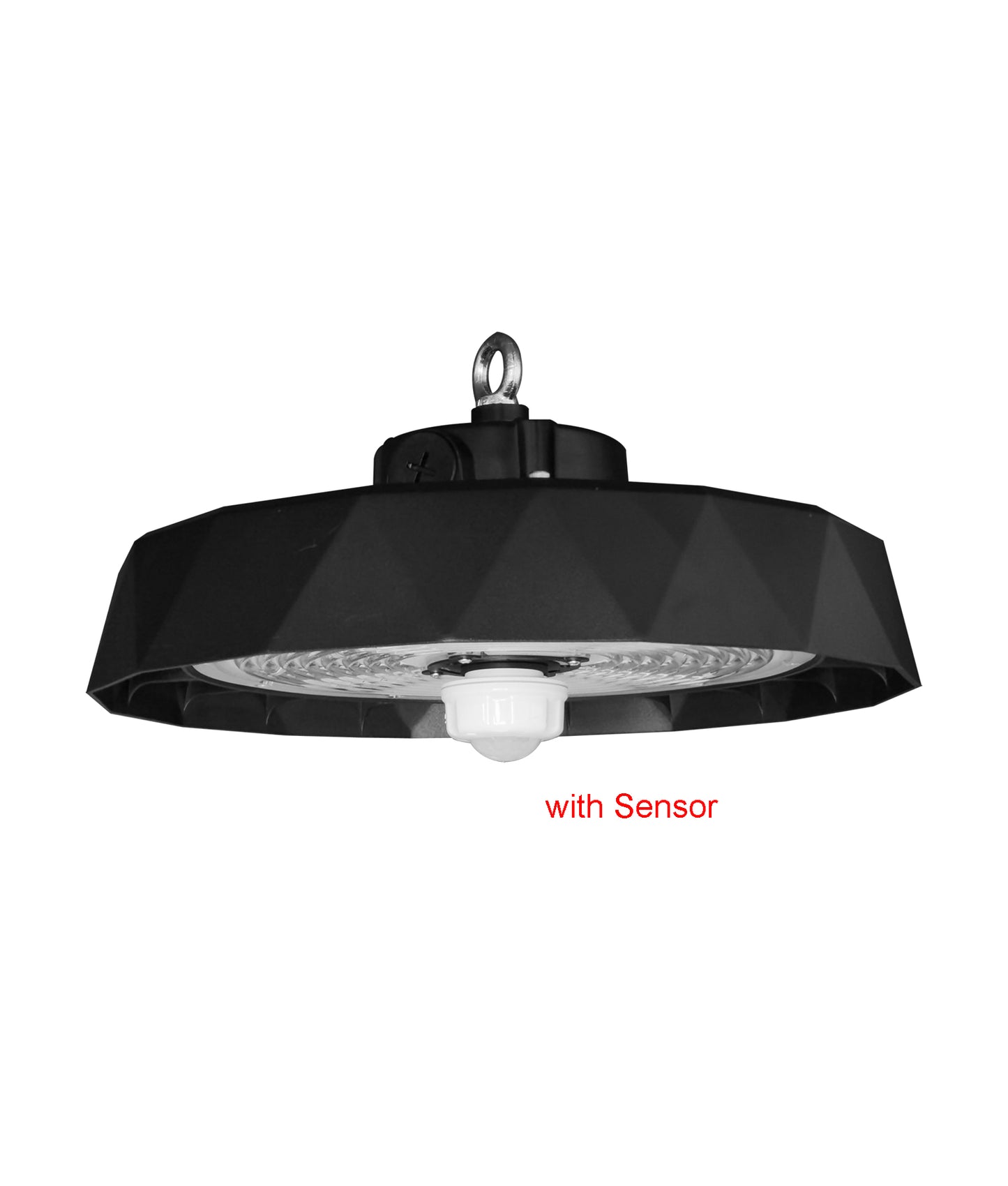

  • Plug in PIR sensor for HIBTRI2 available (sold separately)
  • IP rating: IP65
  • Warranty: 5 year replacement warranty

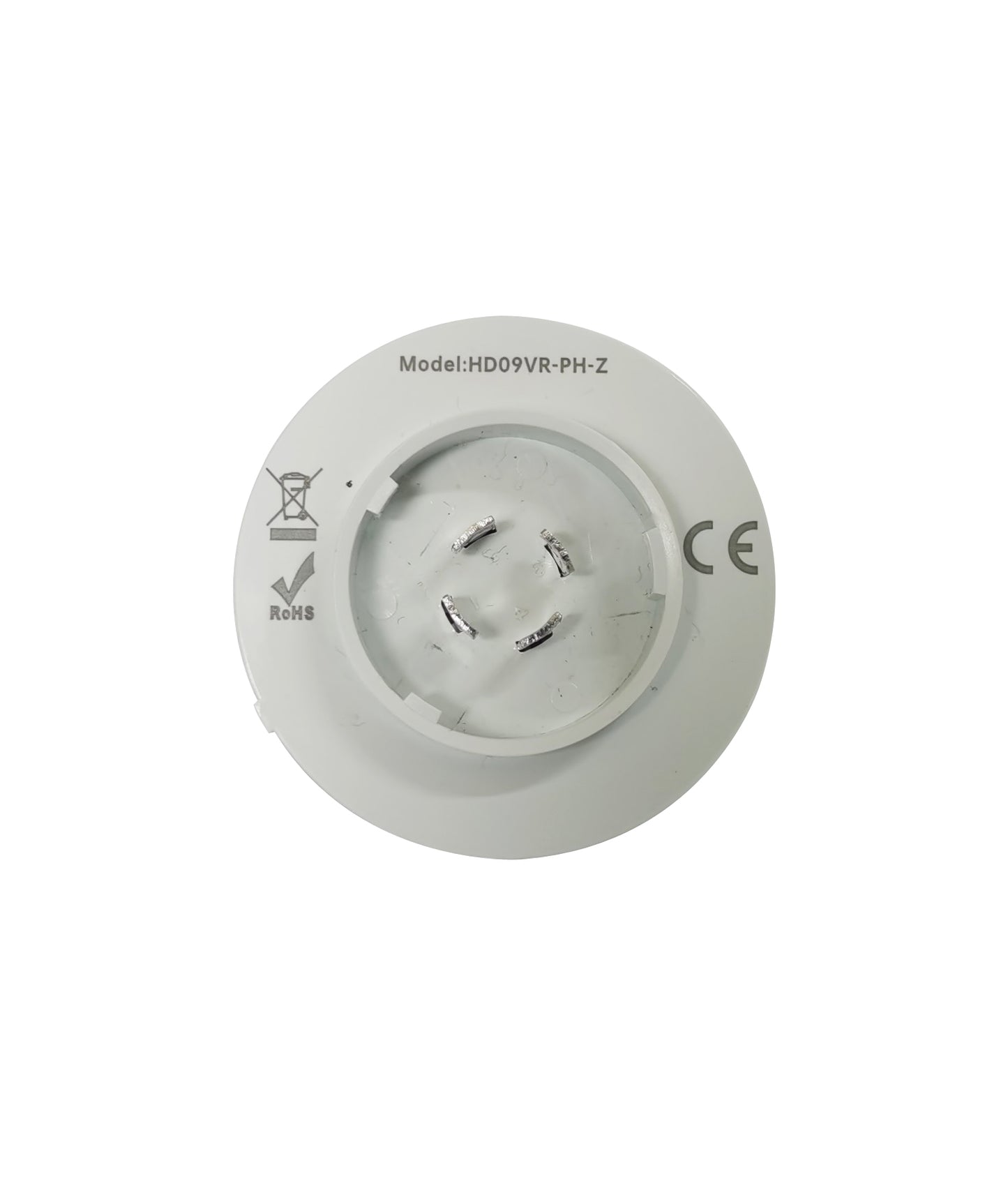

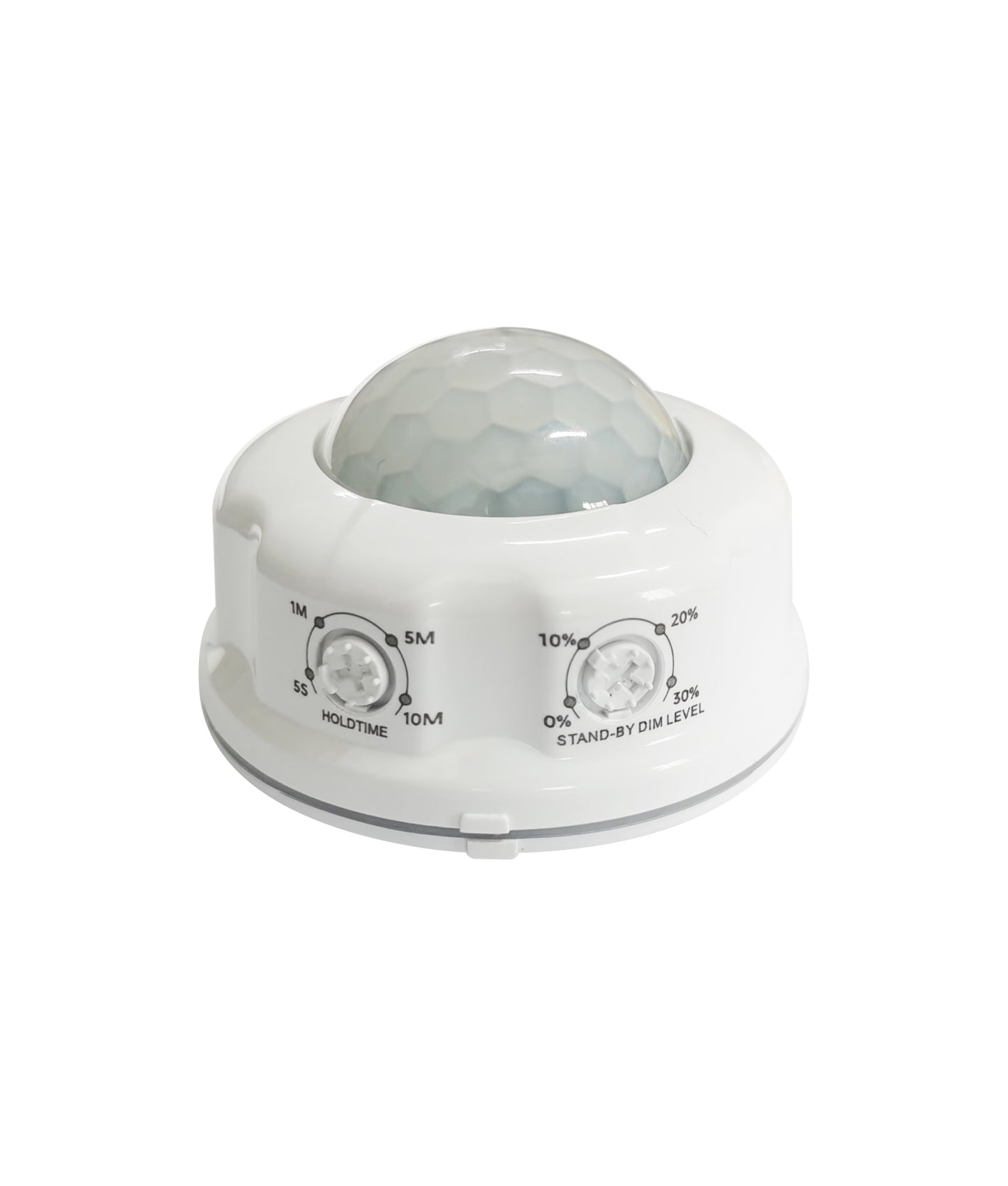

PIR Sensor:

  • Wattage: <0.5W
  • Installation height: recommended up to 12m
  • Detection angle: 120 degree
  • Time delay: 5s / 1min / 5min / 10min
  • Ambient temperature: -20 to 60 degree
  • Stand by dim level setup: 0%, 10%, 20%, 30%
  • UV resistant: Yes
  • Ambient light: day and night
  • IP rating: IP65
  • Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Type
Part No: HIBTRI2

360 in stock


Search the closest store near you to buy CLA Products
View full details

Part No: HIBTRI2
Description: HI BAY LED 100/150/200W RND TRI 90D IP65 Dimmable (1-10V) 3K/4K/5.7K 17500/25500/32000Lm Flex & Plug 1.2m Tri Power Plug in PIR Sensor Option UFO WTY 5YR
Colour: Black
Material: Housing & Faceplate: powder coated aluminium; Heatsink: Aluminium; Diffuser: clear PC
Input Voltage: 120-277V AC
Lamp Holder: -
Globe Included: -
Wattage: 100W / 150W / 200W
Kelvin: 3000K / 4000K / 5700K
Lumens: 16500lm, 23250lm, 30000lm / 17500lm, 25500lm, 32000lm / 17000lm, 24000lm, 31000lm
Beam Angle: 90 degree
Power Factor: 0.95
CRI: >70

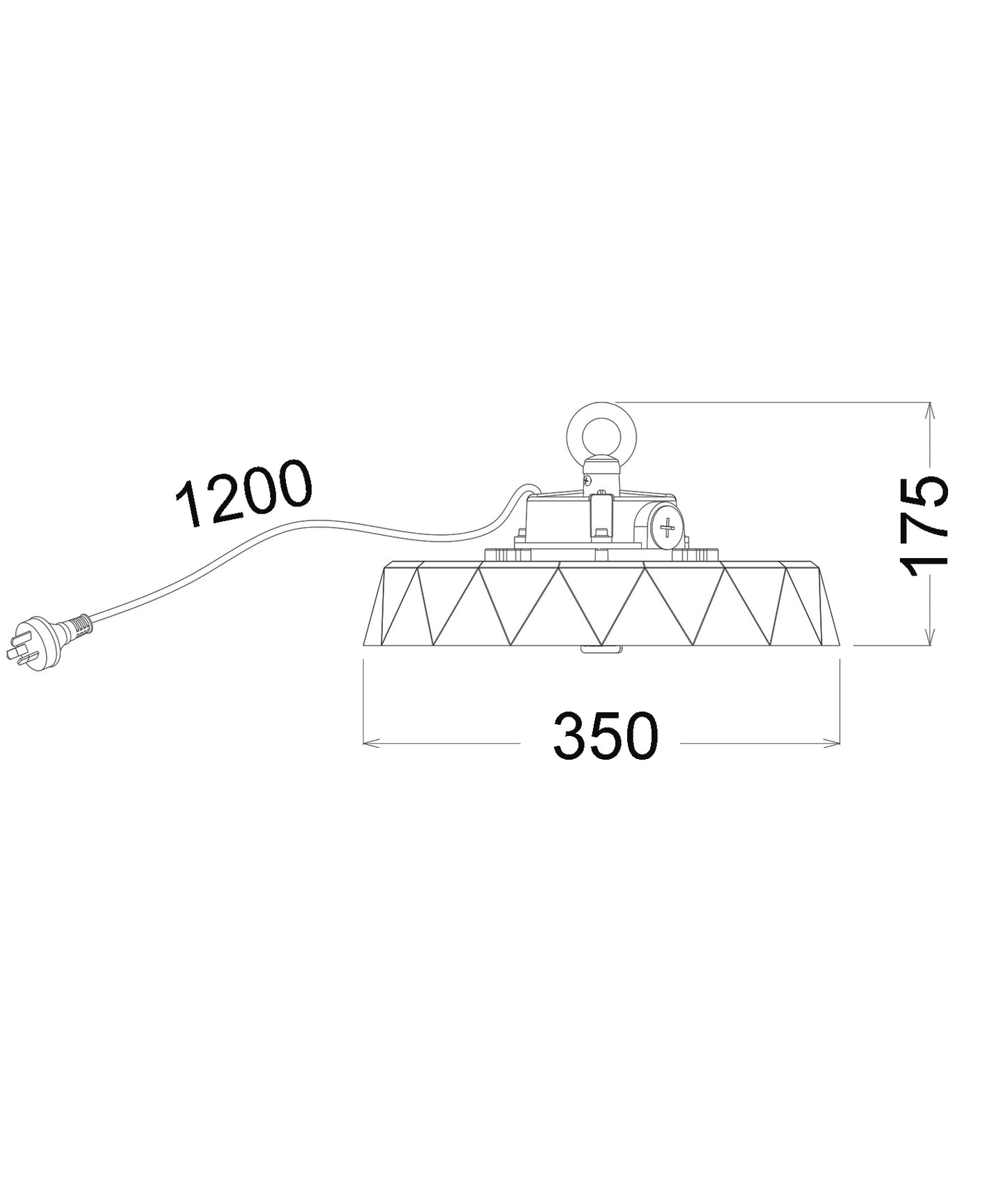

Diameter / Width: 350mm
Height: 175mm
Cut out: -
Canopy: -
Suspension: -
Box Size: 37x37x14.5cm
Box Weight: 3.6kg
Carton Qty: 1/1
